DIXCEL DISC ROTOR TYPE HS 3416047S-HS [Compatibility List in Desc.]

DIXCEL

3416047S-HS

_x000D_ HS type
_x000D_ The high level fusion of stability and brake performance.
_x000D_ HS type is the high end model by DIXCEL, which demonstrates high performance in all situations from the streets to the race circuit.
_x000D_ DIXCEL combined the benefits of both the heat treatment (stability) and slots (brake performance) to create a superior brake disc, the HS type.
_x000D_ On the streets, the slots makes it possible to achieve high levels of friction even at low temperatures. At the race circuit, high level of friction can be achieved along with high stability for an extended amount of time with the heat treatment.
_x000D_ The 6 slots brake disc is adopted as standard in the HS type by considering various factors, such as pad wear, squeal and the removal effect of gas at the fading.
Compatible Vehicles:
MITSUBISHI DELICA D: 5 CV1W 12/07 ~
MITSUBISHI DELICA D: 5 CV2W 11/12 ~ 12/07
MITSUBISHI DELICA D: 5 CV2W 12/07 ~
MITSUBISHI DELICA D: 5 CV4W 10/01 ~ 11/12
MITSUBISHI DELICA D: 5 CV5W 07/01 ~ 12/07
MITSUBISHI DELICA D: 5 CV5W 12/07 ~
MITSUBISHI ECLIPSE CROSS GK1W 18/03 ~
MITSUBISHI GALANT FORTIS CY4A 07/08 ~ 09/11
MITSUBISHI GALANT FORTIS CY3A 09/12 ~ 11/10
MITSUBISHI GALANT FORTIS SPORTBACK CX4A 08/11 ~ 09/04
MITSUBISHI GALANT FORTIS SPORTBACK CX3A 09/12 ~ 11/10
MITSUBISHI GALANT FORTIS SPORTBACK CX6A 11/10 ~
MITSUBISHI OUTLANDER CW4W CW5W CW6W 05/10 ~ 12/10
MITSUBISHI OUTLANDER GF7W GF8W 12/10 ~
MITSUBISHI OUTLANDER GG2W 12/12 ~ 15/06
MITSUBISHI RVR GA3W 10/02 ~ 12/09
MITSUBISHI RVR GA4W 11/10 ~ 12/09
MITSUBISHI RVR GA4W 12/10 ~
CHRYSLER / JEEP COMPASS MK49 / MK4924 12/03 ~
CHRYSLER / JEEP PATRIOT MK7420 / MK74 07/08 ~ 13/05

The heat treatment does not directly improve brake performance. The heat treatment increases the disc resistance against strains and thermal cracking. It also helps maintain stable brake performance for a extended period of time.
_x000D_ The surface of the heat treated brake discs has a burnt colour. Once it is used, the burnt surface will be removed by the pad, and changes back to the colour of normal cast iron. Please be aware that the effect of the heat treatment of the disc will not disappear even if the surface colour changes.
_x000D_ 12 slots version (HST type) is available as a special order. the surcharge of 12 slots is JPY6,000 (w / o tax).
_x000D_ our processing of the rotor, the above package we have shipped in. Were shipped in the package other than the above-mentioned "secondary processed products (slit, heat treatment, dimples, etc.)" will be our warranty.

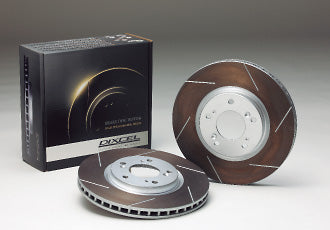

_x000D_ rotor is an image. Shape is the same shape and the normal (genuine) products.
MITSUBISHI DELICA D:

Images are for illustration purpose only. Actual product may vary.
