$2,380.20 SGD $2,536.50 SGD
| /
| Brand | M&M HONDA |
| Series Name | INTAKE SYSTEM KIT BLACK CARBON VENTURI |
| Product Number | 00405-FK8-M001-BLACK |
| Compatible Car | CIVIC FK8 |

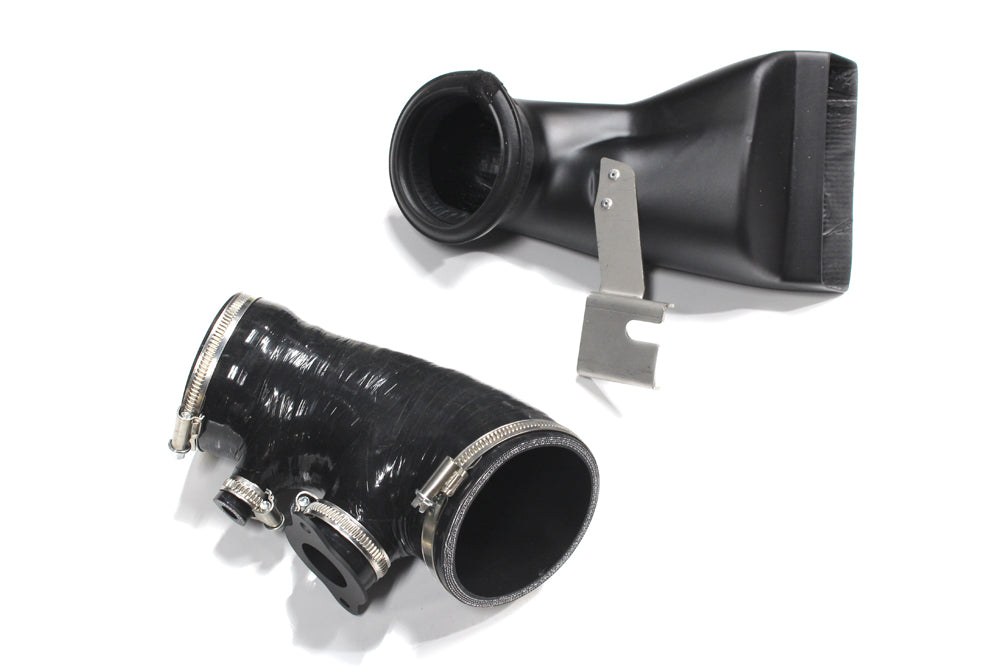

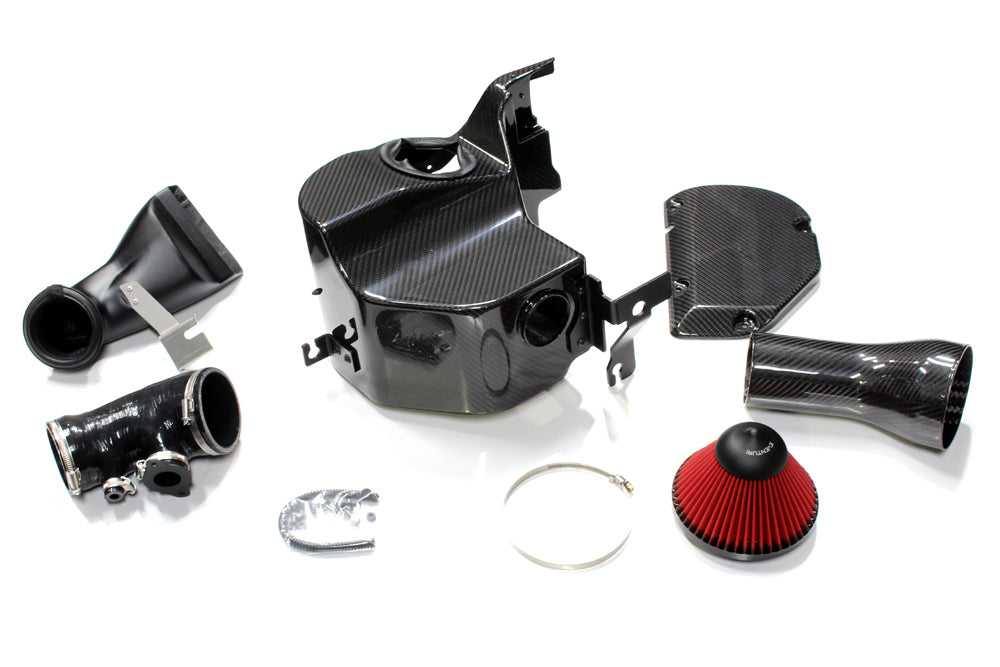

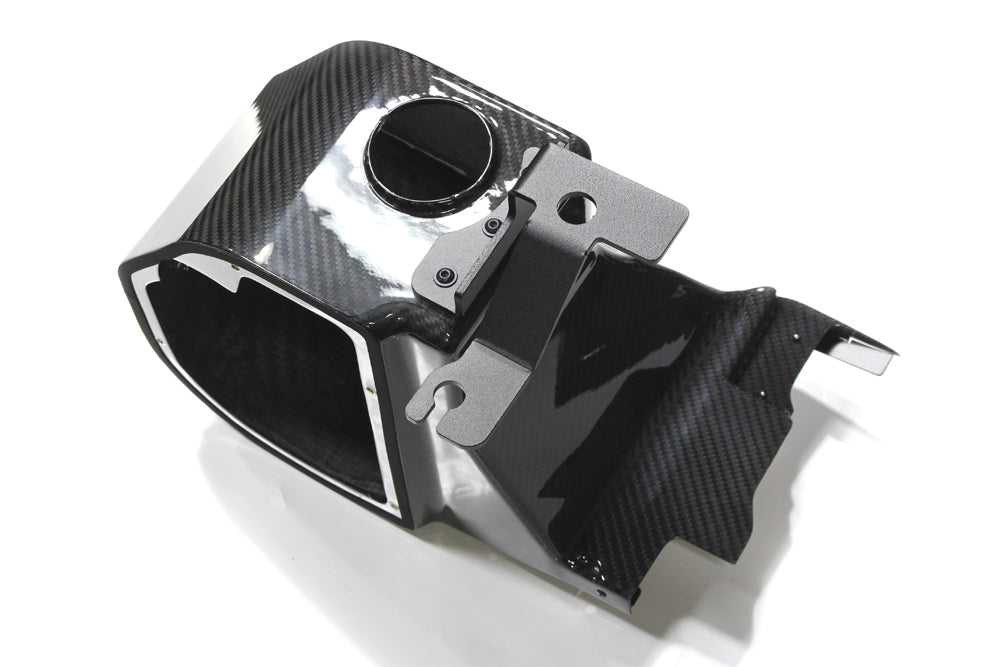

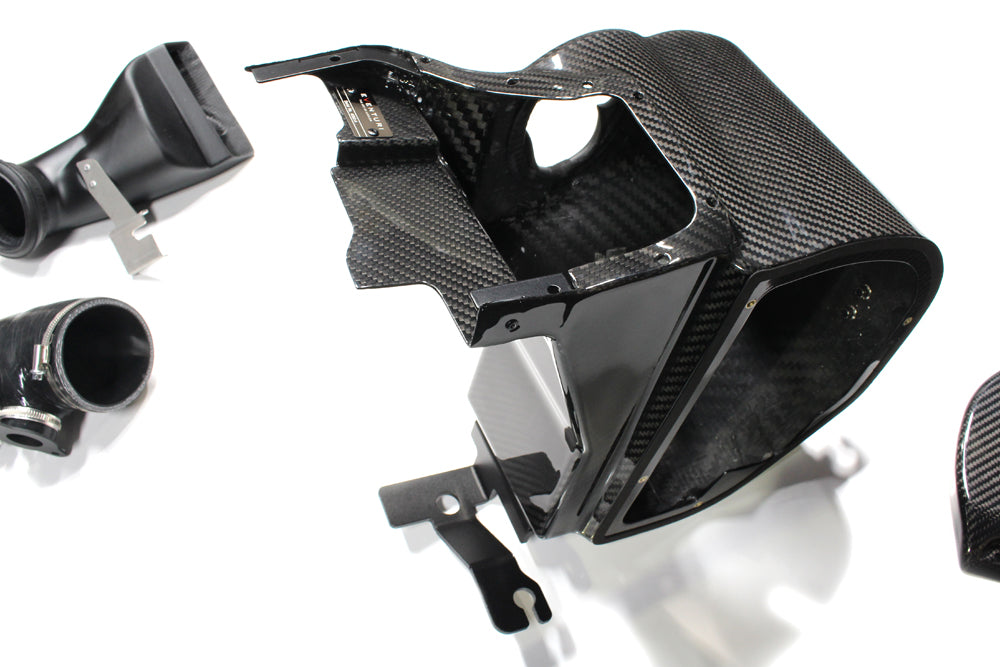

| Product Description | Eventuri is a professionally special intake system that demonstrates high-performance and high-performance performance-oriented by applying aerodynamics to a tuning car born in the United Kingdom. Extensive design iteration by thorough FK8 dyno test and flow analysis, with the aim of unrestricting the turbo inlet path to maintain low inlet temperature, a filter enclosed in a carbon air box and a stock seal on the hood. It is an intake system that succeeds in blocking heat absorption from the engine. It has been proven that the performance can be improved by up to 20ps by improving the intake efficiency. Since the intake air is directly behind the radiator, it is important that the filter is not exposed and was achieved by removing the flexible tube and optimizing the inlet path with a Venturi stack directly connected to the filter. In addition, we added a second inlet to the airbox with a scoop that draws in air from the area of the inner wing. This is almost double the total cross-sectional area that the turbo can escape compared to a single entry on the stock system. The carbon airbox enclosure is designed to maximize the use of available volume and shut off all heat sources. The resulting performance improvements and intake design beauty shine in the FK8's engine room. A standard airbox draws air through a single inlet duct behind the front bumper. The size of this entrance is about 35 cm ^ 2 and it is very small, the position of the filter is just behind the radiator, and when the engine warms up the filter quickly saturates with heat, so just opening the filter in the engine bay is a problem. .. This intake system keeps the filter closed inside the airbox and another 28cm ^ for the intake. Resolve this issue by adding a secondary feed that opens only 2. Combined with the Venturi filter stack, it provides a smooth flow and immediate gain over the entire 14-20 hour RPM range. The graph above shows a comparison of a standard car genuine airbox with exhaust and an Eventuri intake system with a standard map and exhaust. The genuine suction port draws air from only one place from a single inlet duct at the top of the front bumper, but this intake system adds one more place and a second scoop that sucks air from the bottom of the box to the air box. The entrance of is provided and fresh air is inserted from the air duct on the bumper side. M & M HONDA Air Intake System Video Release https://youtu.be/CgdXEItjR1k https://youtu.be/81itMNCb6v8 https://youtu.be/W4QjUEV1AHY Instruction Manual (PDF file) There are some changes. http://www.eventuri.net/wp-content/uploads/Honda-FK8-Instructions-Updated.pdf HONDATA Flash Pro Update information. This is for customers who have both Flash Pro and Venturi Intake System installed at the same time. Please check the updated Flash Pro information for the Venturi Intake system. By setting according to the intake system, you can draw out more power than ever before. pdf HONDATA Flash Pro update information. This is for customers who have both Flash Pro and Venturi Intake System installed at the same time. Please check the updated Flash Pro information for the Venturi Intake system. By setting according to the intake system, you can draw out more power than ever before. pdf HONDATA Flash Pro update information. This is for customers who have both Flash Pro and Venturi Intake System installed at the same time. Please check the updated Flash Pro information for the Venturi Intake system. By setting according to the intake system, you can draw out more power than ever before. be / W4QjUEV1AHY Instruction Manual (PDF file) There are some changes. http://www.eventuri.net/wp-content/uploads/Honda-FK8-Instructions-Updated.pdf HONDATA Flash Pro Update information. This is for customers who have both Flash Pro and Venturi Intake System installed at the same time. Please check the updated Flash Pro information for the Venturi Intake system. By setting according to the intake system, you can draw out more power than ever before. be / W4QjUEV1AHY Instruction Manual (PDF file) There are some changes. http://www.eventuri.net/wp-content/uploads/Honda-FK8-Instructions-Updated.pdf HONDATA Flash Pro Update information. This is for customers who have both Flash Pro and Venturi Intake System installed at the same time. Please check the updated Flash Pro information for the Venturi Intake system. By setting according to the intake system, you can draw out more power than ever before. |
| Remarks | ■ It is a distributor of Venturi in the United Kingdom. ■ It may take some time for delivery, so please check if it is in stock. ■ Please use K & N Maintenance KIT to clean the cleaner body. ■ There are three carbon colors, red, blue, and yellow, in addition to black. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
