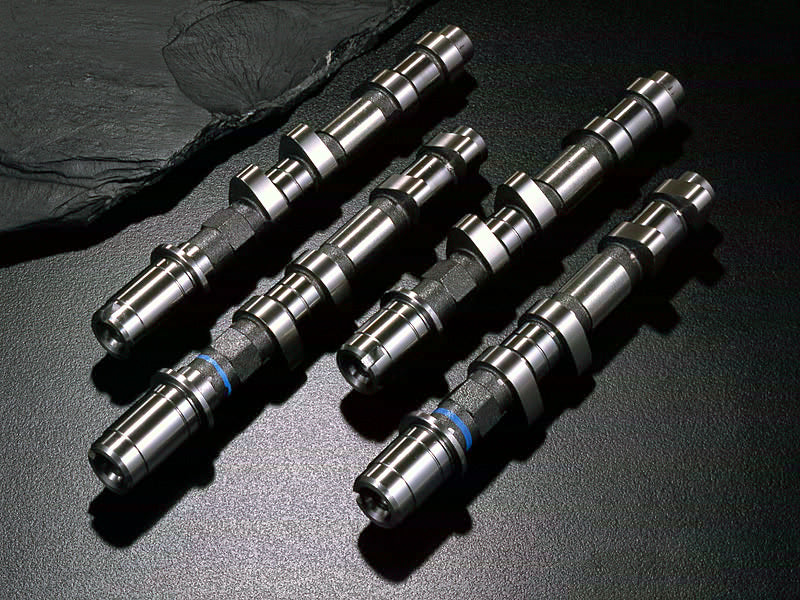

| Brand | JUN AUTO |
| Product Number | 1004M-F002 |
| Compatible Car | SUBARU |
| Compatible Models | EJ20 |
| Product Description | (For IMPREZA WRX / GC8 Applied D-E (EJ20K-SHIM)) Spec (unit: mm) Duration: 66 (264) Lift: 9.5 VC: 0.20 IN * VC = Valve Clearance (cool conditions) |
| Remarks | It is for Inner shim (under bucket) type. [REQUIRED]Cam lobe refuge machining [REQUIRED]Reinforced valve spring * The height of lift shows the valve lift. * As for this product, two camshafts of INT or EXH are contained. * The profile which was written 'for the Inner shim (under bucket) type' in the remarks cannot use on the outer shim (under bucket) type cylinder head. * The camshaft which is 9.5mm or higher lift of the profile needs to use uprated valve springs. * Regarding the profile which was not written '[REQUIRED]Cam lobe refuge machining' in the remarks, you may need to trim your cylinder head according to the conditions of your cylinder head so that a cam lob does not hit to the cylinder head. * We prepare the Camshaft Kit which contains valve springs and valve retainers. (except for EJ20G) |
| Notes | Images are for illustration purpose only. Actual product may vary. |
