| Brand | JUN AUTO |
| Product Number | 1004M-N532 |
| Compatible Car | NISSAN |
| Compatible Models | RB26DETT |

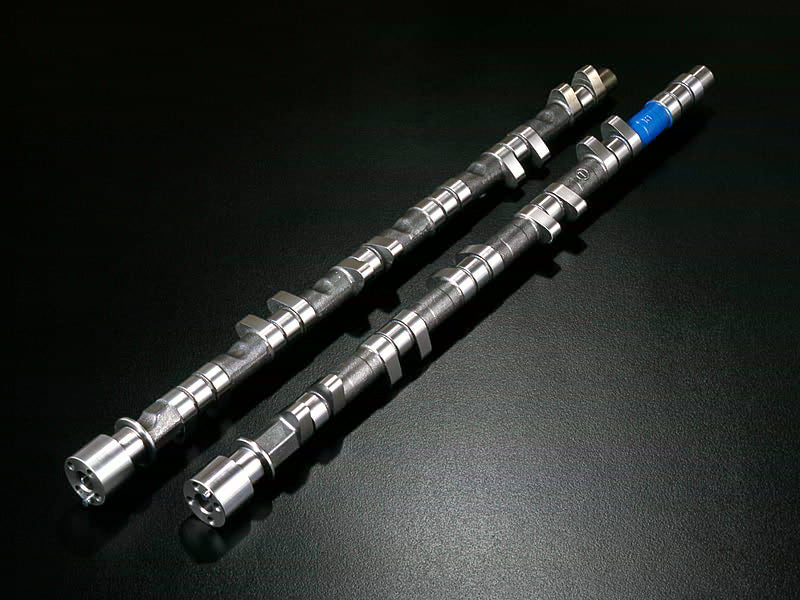

| Product Description | (Product No.: For R34) Bolt-on Camshaft Series: This camshaft already adjusted the valve timing. It is bolt-on camshaft which is stock base circle. Spec (unit: mm) Duration: 62 (248) Lift: 9.15 BC: 32 VC: 0.33 EX * VC=Valve Clearance (cool conditions) |
| Remarks | * The height of lift shows the valve lift. * The camshaft which is 10.5mm or higher lift of the profile needs to trim your cylinder head. * You may need to trim your cylinder head according to the conditions of your cylinder head even if it is under 10.5mm so that a cam lob does not hit to the cylinder head. * The camshaft which is 11.35mm or higher lift of the profile needs to use valve springs for high lift. * The camshaft which is 10.8mm or higher lift of the profile needs to use the exclusive use valve retainers (+0.5mm offset). * The camshaft which is 11.35mm or higher lift of the profile needs to use the exclusive use valve retainers (+1.5mm offset). * We prepare the Camshaft Kit which contains valve springs and valve retainers. * Intake camshafts for BNR34 are same as the BNR32/BCNR33 |
| Notes | Images are for illustration purpose only. Actual product may vary. |
