RS-R BEST-I COILOVER SUSPENSION RECOMMENDED SPRING RATE FOR AUDI A4 AVANT 8KCDNF BIAU400M

$1,806.00 SGD $2,336.25 SGD

| /

Brand
RS-R
Series Name
BEST-I COILOVER SUSPENSION RECOMMENDED SPRING RATE
Product Number
BIAU400M
Compatible Car
AUDI A4 AVANT 8KCDNF
Product Description
Model year: H21/3~ (2009/3~)
Drive (Displacement): 4WD 2000 TB
Series: Best☆i
Recommended vehicle height adjustment range (mm) (F/R): +10~-40/+5~-35
Recommended vehicle height (mm) (F/R): -5~-10/-5~-10
Maximum adjustment range (mm) (F/R): +10~-75/+5~-35
Recommended spring rate (kg/mm) (F/R): 9.00/4.00
JAN: 826090
Damping force adjustment (F/R): ※1/※1
Number of adjustment steps (F/R): 24/36
Overall length adjustment (F/R): ○/○
Front camber adjustment: ×
Rear vehicle height adjustment: Screw type
Matching grade: 2.0TFSI Quattro S-line (B8)
Note: Front strut diameter φ53, front and rear genuine upper mounts reused. Can be installed on 3.2L vehicles.
Remarks
Front strut diameter φ53, front and rear genuine upper mounts can be reused. Can be installed on 3.2L vehicles. CAN ONLY BE SHIPPED WITH UPS OR FEDEX
Notes

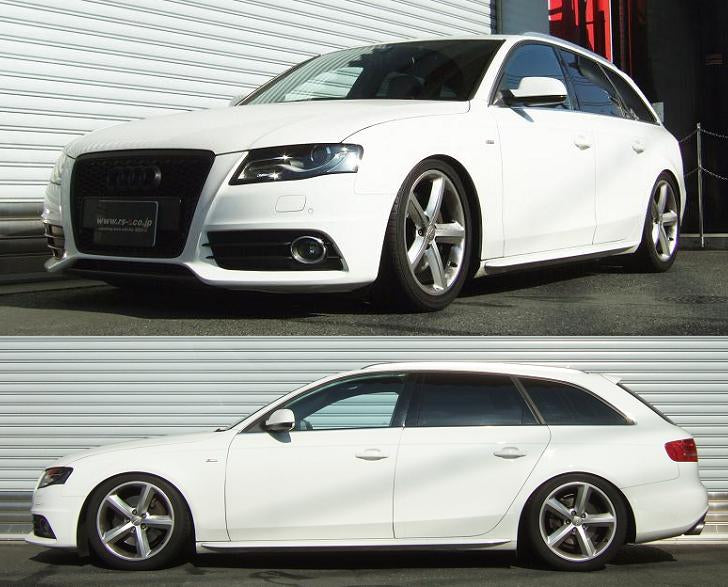

Images are for illustration purpose only. Actual product may vary.
