RS-R BEST-I C&K COILOVER SUSPENSION RECOMMENDED SPRING RATE FOR DAIHATSU TANTO L375S BICKD105M

$1,208.00 SGD $1,737.00 SGD

| /

Brand
RS-R
Series Name

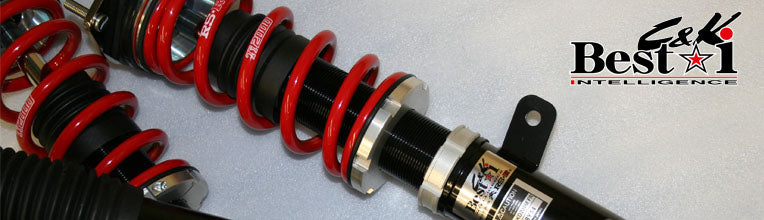

BEST-I C&K COILOVER SUSPENSION RECOMMENDED SPRING RATE
Product Number
BICKD105M
Compatible Car

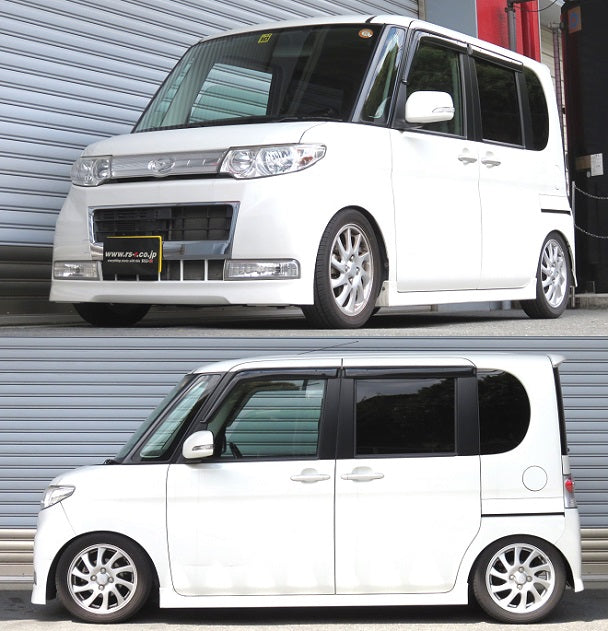

DAIHATSU TANTO L375S
Product Description
Model year: H19/12~H25/10 (2007/12~2013/10)
Drive (Displacement): FF 660 TB
Series: Best☆i C&K
Recommended vehicle height adjustment range (mm) (F/R): -25~-70/-40~-85
Recommended vehicle height (mm) (F/R): -45~-50/-55~-60
Maximum adjustment range (mm) (F/R): -15~-95/-40~-85
Recommended spring rate (kg/mm) (F/R): 4.00/2.30
JAN: 830080
Damping force adjustment (F/R): ○/○
Number of adjustment steps (F/R): 36/24
Overall length adjustment (F/R): ○/×
Front camber adjustment: ×
Rear height adjustment: Screw type
Matching grade: Custom RS
Remarks: All grades can be installed. Because it is a sliding door on one side, there will be a difference in height between the left and right due to the weight distribution. Therefore, the screw positions on the rear are different on the left and right.
Remarks
Can be installed on all grades. Because the vehicle has a sliding door on one side, there is a difference in vehicle height between the left and right sides due to weight distribution. Therefore, the screw positions on the rear are different between the left and right sides. CAN ONLY BE SHIPPED WITH UPS OR FEDEX
Notes
Images are for illustration purpose only. Actual product may vary.
