RS-R BEST-I UPPER AND LOWER COILOVER SUSPENSION RECOMMENDED SPRING RATES FOR SUZUKI HUSTLER MR52S BICKJS411M

$1,418.00 SGD $1,835.00 SGD

| /

Brand
RS-R
Series Name
BEST-I UPPER AND LOWER COILOVER SUSPENSION RECOMMENDED SPRING RATES
Product Number
BICKJS411M
Compatible Car

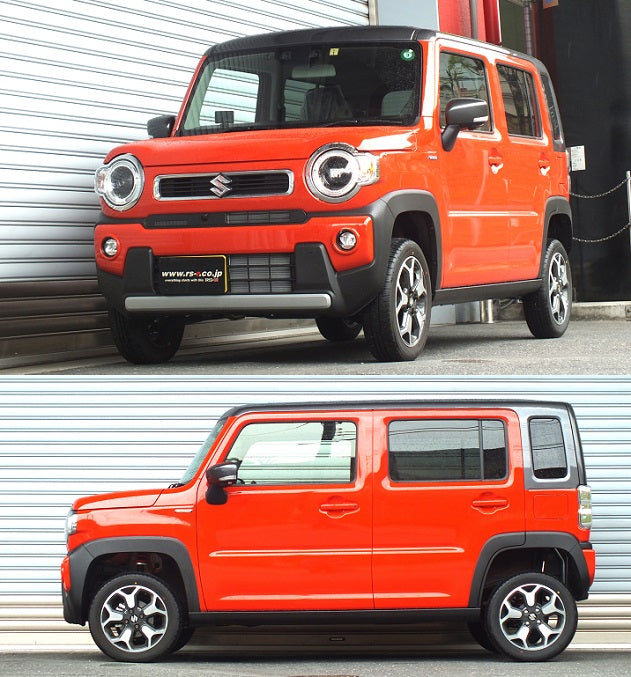

SUZUKI HUSTLER MR52S
Product Description
Model year:R2/1~ (2020/1~)
Drive (Displacement):FF 660 TB+HV
Series:Best☆i Up/Down
Recommended vehicle height adjustment range (mm) (F/R):+35~-10/+35~-10
Recommended vehicle height (mm) (F/R):+15~+10/+15~+10
Maximum adjustment range (mm) (F/R):+50~-45/+35~-10
Recommended spring rate (kg/mm) (F/R):5.00/3.10
JAN:838543
Damping force adjustment (F/R):○/○
Number of adjustment steps (F/R):36/36
Overall length adjustment (F/R):○/○
Front camber adjustment:※4
Rear ride height adjustment: Screw type
Matching grade: Hybrid G Turbo
Remarks: Up & down specifications. Front genuine upper mount is reused. Special self-leveling link rod included. 4WD vehicles not confirmed.
Remarks
Up & down specifications. Front genuine upper mount is reused. Special self-leveling link rod included. Not tested on 4WD vehicles. CAN ONLY BE SHIPPED WITH UPS OR FEDEX
Notes
Images are for illustration purpose only. Actual product may vary.
