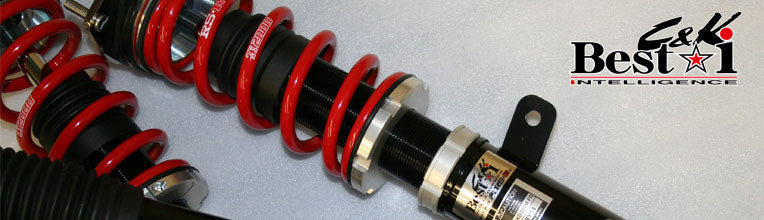

RS-R BEST-I C&K COILOVER SUSPENSION RECOMMENDED SPRING RATE FOR SUZUKI WAGON R SMILE MX91S BICKS152M

$1,208.00 SGD $1,737.00 SGD

| /

Brand
RS-R
Series Name
BEST-I C&K COILOVER SUSPENSION RECOMMENDED SPRING RATE
Product Number
BICKS152M
Compatible Car
SUZUKI WAGON R SMILE MX91S
Product Description
Model year:R3/9~ (2021/9~)
Drive (Displacement):FF 660 HV
Series:Best☆i C&K
Recommended vehicle height adjustment range (mm) (F/R):-5~-50/-10~-55
Recommended vehicle height (mm) (F/R):-25~-30/-30~-35
Maximum adjustment range (mm) (F/R):+10~-65/-10~-55
Recommended spring rate (kg/mm) (F/R):4.00/2.80
JAN:839830
Damping force adjustment (F/R):○/○
Number of adjustment steps (F/R):36/36
Overall length adjustment (F/R):○/×
Front camber adjustment:※4
Rear vehicle height adjustment:Screw type
Matching grade: Hybrid S with 2-tone roof package
Note: Front genuine upper mount is reused, 4WD vehicle (MX91S) not confirmed
Remarks
Front genuine upper mount reused, 4WD vehicle (MX91S) not yet confirmed CAN ONLY BE SHIPPED WITH UPS OR FEDEX
