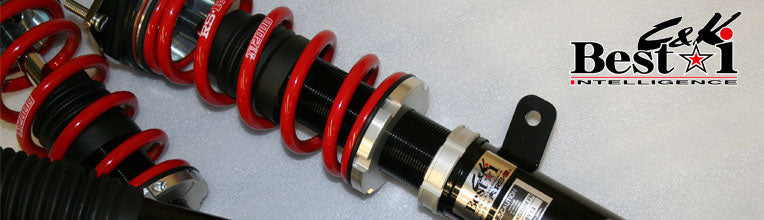

RS-R BEST-I C&K COILOVER SUSPENSION RECOMMENDED SPRING RATE FOR MAZDA SCRUM WAGON DG17W BICKS651H2

$1,208.00 SGD $1,737.00 SGD

| /

Brand
RS-R
Series Name
BEST-I C&K COILOVER SUSPENSION RECOMMENDED SPRING RATE
Product Number
BICKS651H2
Compatible Car
MAZDA SCRUM WAGON DG17W
Product Description
Model year:R1/7~ (2019/7~)
Drive (Displacement):4WD 660 TB
Series:Best☆i C&K
Recommended vehicle height adjustment range (mm) (F/R):-10~-55/-20~-70
Recommended vehicle height (mm) (F/R):-30~-35/-40~-45
Maximum adjustment range (mm) (F/R):+15~-55/-20~-70
Recommended spring rate (kg/mm) (F/R):5.00/4.10
JAN:837508
Damping force adjustment (F/R):○/○
Number of adjustment steps (F/R):36/36
Overall length adjustment (F/R):○/×
Front camber adjustment:※4
Rear height adjustment: Screw type
Matching grade: PZ Turbo Special
Remarks: Cargo specification. 4WD vehicle. Click on the photo for details.
Remarks
Cargo model. 4WD. Click on the photo for details. CAN ONLY BE SHIPPED WITH UPS OR FEDEX
Notes
Images are for illustration purpose only. Actual product may vary.
