$1,795.00 SGD $2,323.00 SGD
| /
| Brand | RS-R |
| Series Name | BEST-I UPPER AND LOWER COILOVER SUSPENSION RECOMMENDED SPRING RATES |
| Product Number | BIJT387M |
| Compatible Car | TOYOTA C-HR ZYX10 |

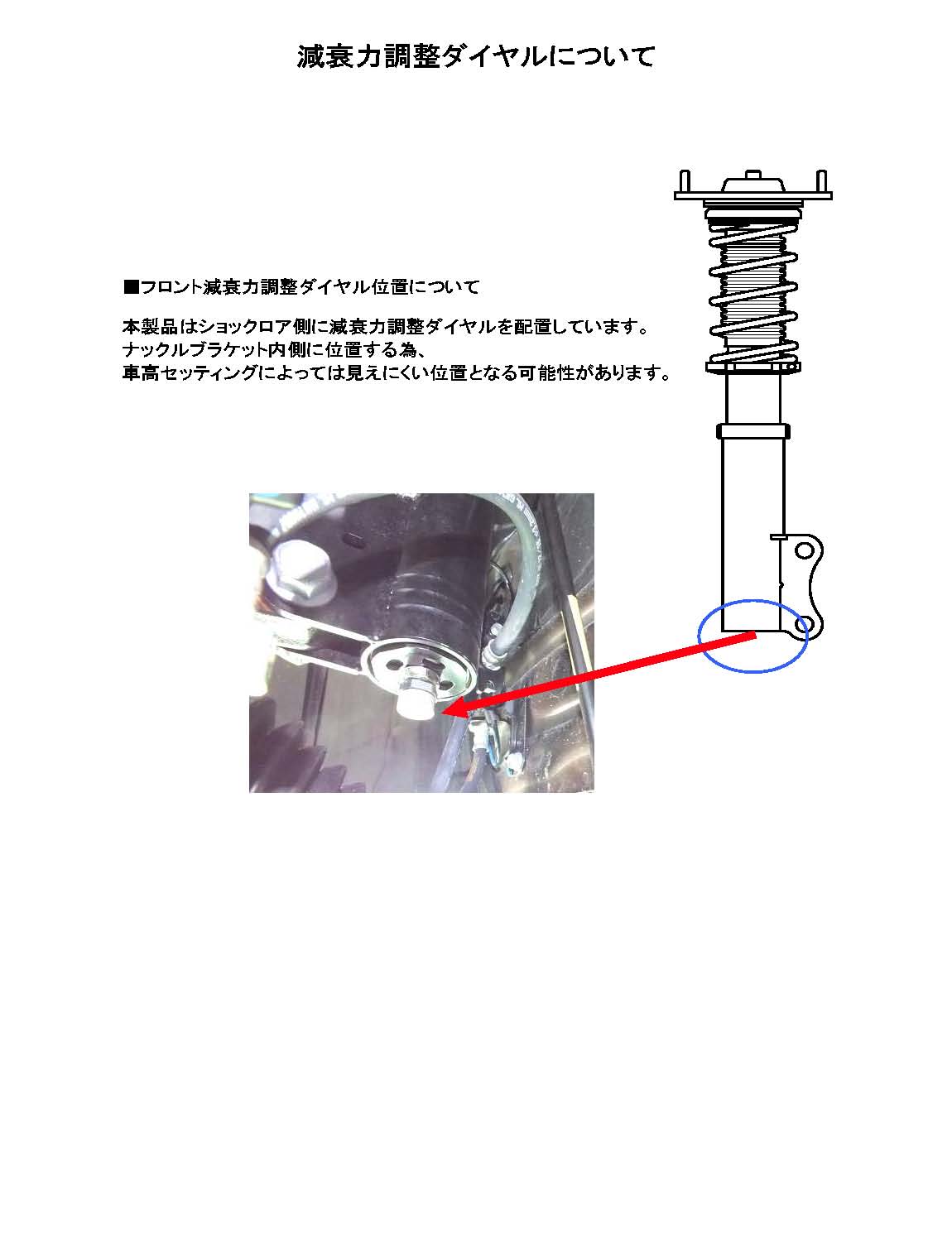

| Product Description | Model year: H28/12~ (2016/12~) Drive (Displacement): FF 1800 HV Series: Best☆i Up/Down Recommended vehicle height adjustment range (mm) (F/R): +20~-40/+25~-40 Recommended vehicle height (mm) (F/R): -10~-15/-5~-10 Maximum adjustment range (mm) (F/R): +65~-70/+50~-70 Recommended spring rate (kg/mm) (F/R): 5.00/5.00 JAN: 838260 Damping force adjustment (F/R): ○/○ Number of adjustment steps (F/R): 36/36 Overall length adjustment (F/R): ○/○ Front camber adjustment: ○ Rear ride height adjustment: Full length type Matching grade: G Note: Not confirmed for R1/10~MC. Up & down specification. Rear upper mount reused. Front damping force adjustment bottom dial specification. Rear coilover specification. Click the photo for details. |
| Remarks | Not yet confirmed for use after R1/10 model change. Up & down specification. Rear upper mount is reused. Front damping force adjustment bottom dial specification. Rear coilover specification. Click the photo for details. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
