$1,569.00 SGD $2,030.00 SGD
| /
| Brand | RS-R |

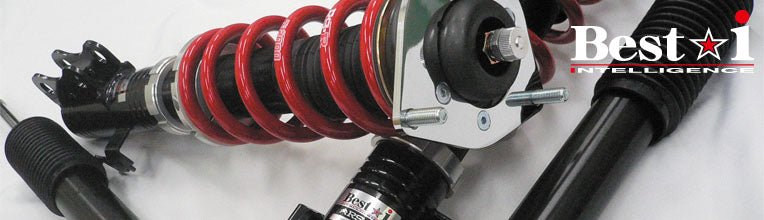

| Series Name | BEST-I COILOVER SUSPENSION RECOMMENDED SPRING RATE |
| Product Number | BIT382M |

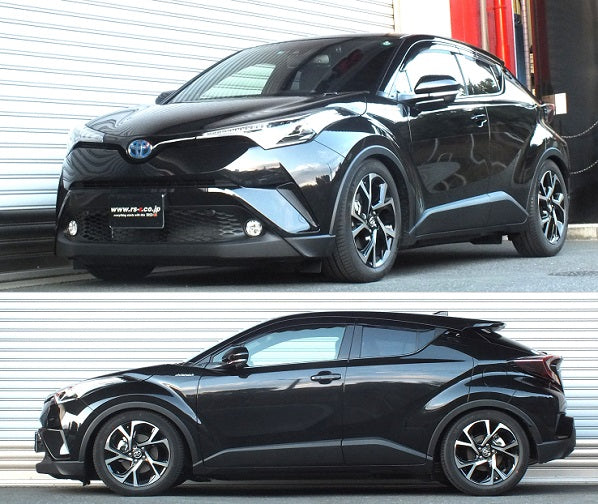

| Compatible Car | TOYOTA C-HR ZYX10 |
| Product Description | Model year: H28/12~ (2016/12~) Drive (Displacement): FF 1800 HV Series: Best☆i Recommended vehicle height adjustment range (mm) (F/R): -10~-55/-10~-65 Recommended vehicle height (mm) (F/R): -30~-35/-40~-45 Maximum adjustment range (mm) (F/R): +10~-80/-10~-65 Recommended spring rate (kg/mm) (F/R): 6.00/5.00 JAN: 832794 Damping force adjustment (F/R): ※1/○ Number of adjustment steps (F/R): 24/36 Overall length adjustment (F/R): ○/○ Front camber adjustment: ○ Rear ride height adjustment: Screw type Matching grade: G Note: Not confirmed for installation after R1/10~MC. Reuse genuine rear upper mount. Shock must be removed when adjusting front damping force. Adjustment possible by drilling holes in the plate on the vehicle body. *Please do so at your own risk. Processing example ⇒ Click on the photo |
| Remarks | Installation not confirmed for R1/10~MC. Reuse of genuine rear upper mount. Shock must be removed when adjusting front damping force. Adjustment can be done by drilling holes in the plate on the vehicle body. *Please do so at your own risk. Example of modification ⇒ Click on the photo CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
