$1,569.00 SGD $2,030.00 SGD
| /
| Brand | RS-R |
| Series Name | BEST-I COILOVER SUSPENSION SOFT SPRING RATE |
| Product Number | BIT382S |
| Compatible Car | TOYOTA C-HR NGX10 |

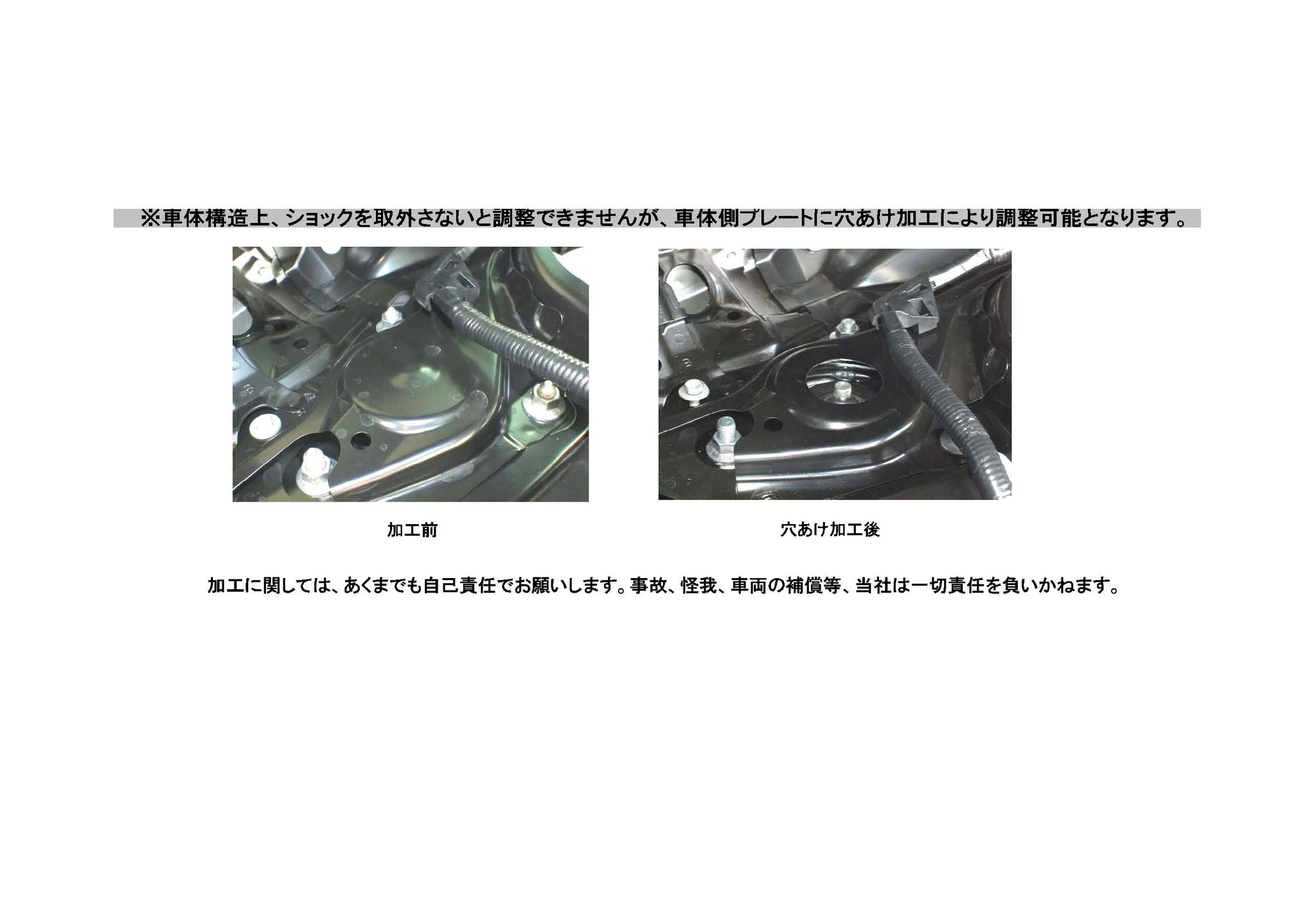

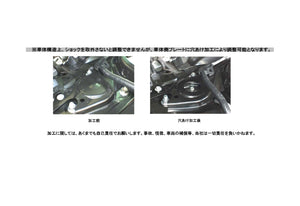

| Product Description | Model year:H30/5~ (2018/5~) Drive (Displacement):FF 1200 TB Series:Best☆i Recommended vehicle height adjustment range (mm) (F/R):0~-45/-5~-55 Recommended vehicle height (mm) (F/R):-20~-25/-30~-35 Maximum adjustment range (mm) (F/R):+20~-70/-5~-55 Soft spring rate (kg/mm) (F/R):5.00/4.00 JAN:832800 Damping force adjustment (F/R):○/○ Number of adjustment steps (F/R):24/36 Overall length adjustment (F/R):○/○ Front camber adjustment:○ Rear vehicle height adjustment:Screw type Matching grade: G-T Note: Not confirmed for installation after R1/10~MC. Reuse genuine rear upper mount. Shock must be removed when adjusting front damping force. Adjustment possible by drilling holes in the plate on the vehicle body. *Please do so at your own risk. Processing example ⇒ Click on the photo |
| Remarks | Installation not confirmed for R1/10~MC. Reuse of genuine rear upper mount. Shock must be removed when adjusting front damping force. Adjustment can be done by drilling holes in the plate on the vehicle body. *Please do so at your own risk. Example of modification ⇒ Click on the photo CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
