RS-R BEST-I COILOVER SUSPENSION RECOMMENDED SPRING RATE FOR TOYOTA CROWN SPORTS AZSH37W BIT976M

$1,645.00 SGD $2,127.00 SGD

| /

Brand
RS-R
Series Name
BEST-I COILOVER SUSPENSION RECOMMENDED SPRING RATE
Product Number
BIT976M
Compatible Car

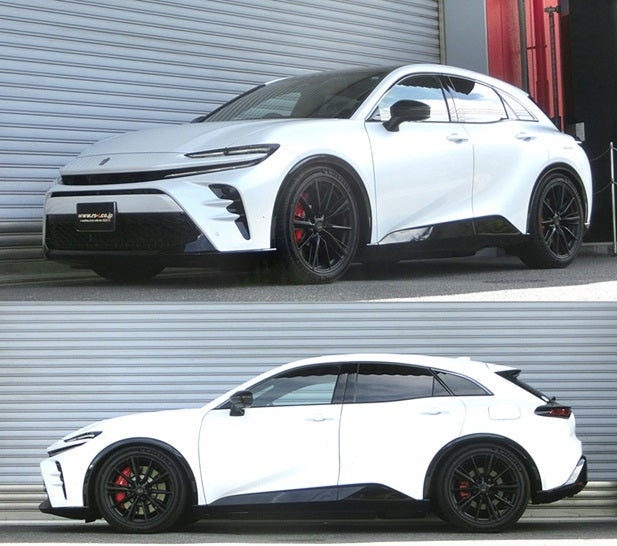

TOYOTA CROWN SPORTS AZSH37W
Product Description
Model year: R5/12~ (2023/12~)
Drive (Displacement): 4WD 2500 HV
Series: Best☆i
Recommended vehicle height adjustment range (mm) (F/R): -20~-65/-5~-60
Recommended vehicle height (mm) (F/R): -40~-45/-35~-40
Maximum adjustment range (mm) (F/R): -5~-100/-5~-60
Recommended spring rate (kg/mm) (F/R): 8.00/12.0
JAN: 842519
Damping force adjustment (F/R): ○/○
Number of adjustment steps (F/R): 36/36
Overall length adjustment (F/R): ○/○
Front camber adjustment: ×
Rear vehicle height adjustment: Screw type
Matching grade: RS
Note: AVS function will be cut. Rear genuine upper mount can be reused.
Remarks
The AVS function is cut off. The rear genuine upper mount is reused. CAN ONLY BE SHIPPED WITH UPS OR FEDEX
Notes
Images are for illustration purpose only. Actual product may vary.
