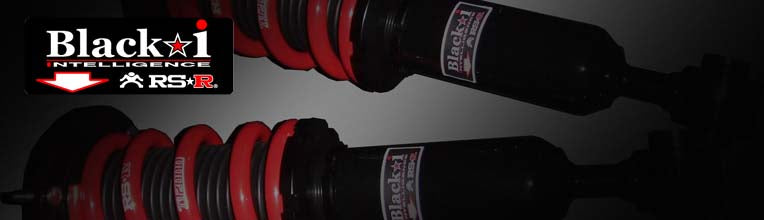

RS-R BLACK-I COILOVER SUSPENSION RECOMMENDED SPRING RATE FOR NISSAN SERENA HC26 BKN705M

$1,645.00 SGD $2,127.00 SGD

| /

Brand
RS-R
Series Name
BLACK-I COILOVER SUSPENSION RECOMMENDED SPRING RATE
Product Number
BKN705M
Compatible Car
NISSAN SERENA HC26
Product Description
Model year: H25/12~ (2013/12~)
Drive (Displacement): FF 2000 HV
Series: Black☆i
Recommended vehicle height adjustment range (mm) (F/R): -20~-70/-55~-75
Recommended vehicle height (mm) (F/R): -40~-45/-55~-60
Maximum adjustment range (mm) (F/R): -20~-120/-55~-105
Recommended spring rate (kg/mm) (F/R): 8.00/7.10
JAN: 825413
Damping force adjustment (F/R): ○/○
Number of adjustment steps (F/R): 36/36
Overall length adjustment (F/R): ○/○
Front camber adjustment: ○
Rear vehicle height adjustment: Spacer type
Matching grade: Rider Black Line
Note: Spring rate selection range F only: 6K to 14K. At the time of shipment, the minimum ground clearance is 90 to 100 mm (recommended specifications only).
Remarks
Spring rate selection range F only: 6K to 14K. At the time of shipment, the minimum ground clearance is 90 to 100 mm (recommended specifications only). CAN ONLY BE SHIPPED WITH UPS OR FEDEX
