$1,622.00 SGD $2,098.00 SGD
| /
| Brand | RS-R |
| Series Name | BLACK-I COILOVER SUSPENSION RECOMMENDED SPRING RATE |
| Product Number | BKT381M |
| Compatible Car | TOYOTA C-HR NGX50 |

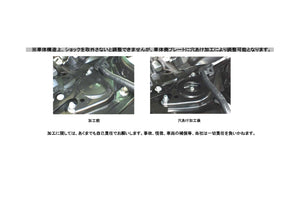

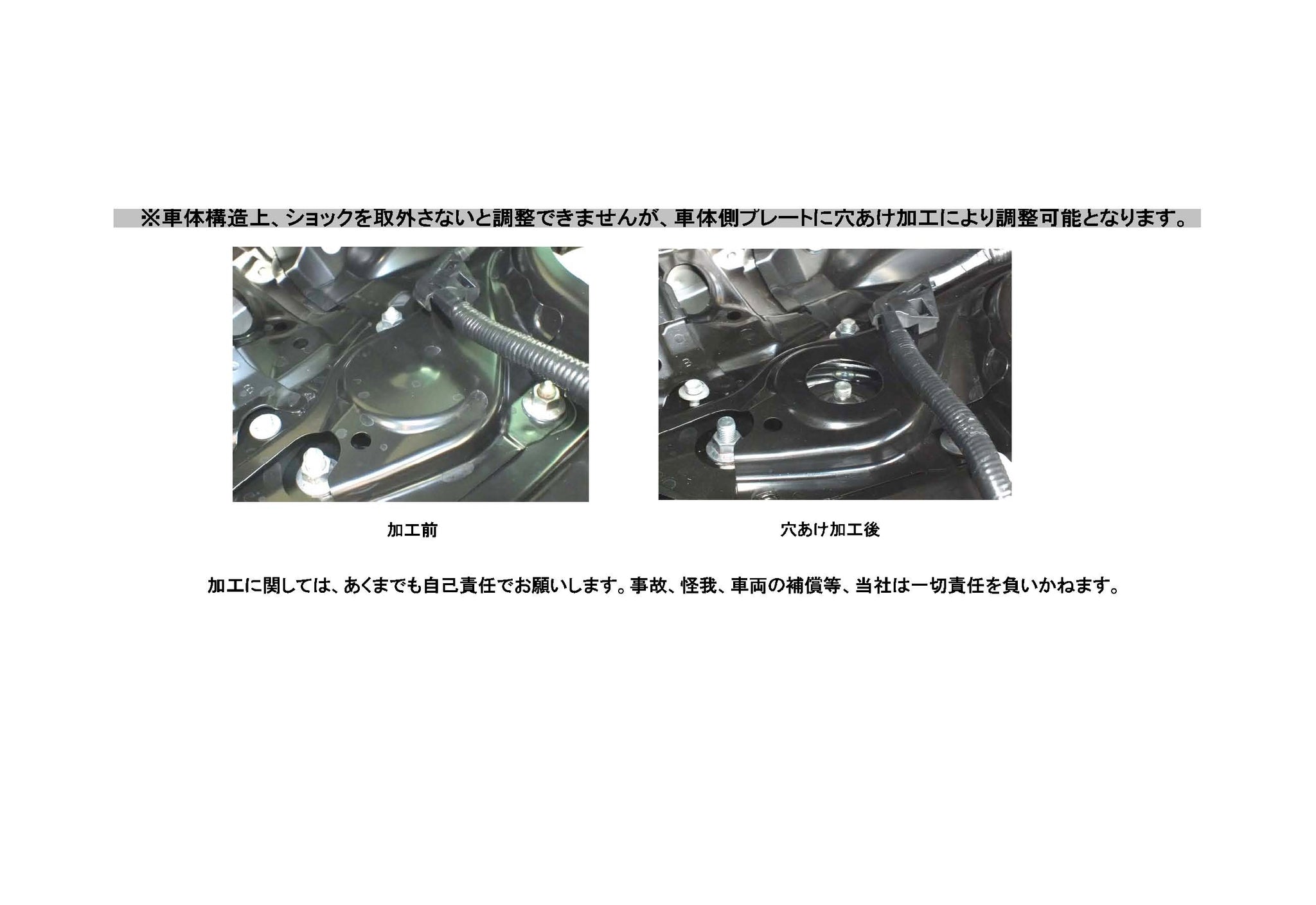

| Product Description | Model year: H28/12~ (2016/12~) Drive (Displacement): 4WD 1200 TB Series: Black☆i Recommended vehicle height adjustment range (mm) (F/R): -40~-90/-60~-75 Recommended vehicle height (mm) (F/R): -50~-55/-60~-65 Maximum adjustment range (mm) (F/R): -40~-125/-60~-110 Recommended spring rate (kg/mm) (F/R): 8.00/8.00 JAN: 832855 Damping force adjustment (F/R): ○/○ Number of adjustment steps (F/R): 24/36 Overall length adjustment (F/R): ○/○ Front camber adjustment: ○ Rear ride height adjustment: Screw type Matching grade: G-T Note: Not confirmed for R1/10 and after minor change. Reuse of genuine rear upper mount. Spring rate selection range F6-12K, R6-12K. At the time of shipment, the minimum ground clearance is 90-100mm (recommended specifications only). Shock must be removed when adjusting front damping force. Adjustment is possible by drilling holes in the plate on the vehicle body. *Please do so at your own risk. Processing example ⇒ Click on the photo |
| Remarks | Installation not confirmed for R1/10 and after model change. Reuse of genuine rear upper mount. Spring rate selection range F6-12K, R6-12K. Minimum ground clearance of 90-100mm is ensured at the time of shipment (recommended specifications only). Shock must be removed when adjusting front damping force. Adjustment possible by drilling holes in the plate on the vehicle body. *Please do so at your own risk. Processing example ⇒ Click on the photo CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
