$1,622.00 SGD $2,098.00 SGD
| /
| Brand | RS-R |
| Series Name | BLACK-I COILOVER SUSPENSION RECOMMENDED SPRING RATE |
| Product Number | BKT382M |
| Compatible Car | TOYOTA C-HR NGX10 |

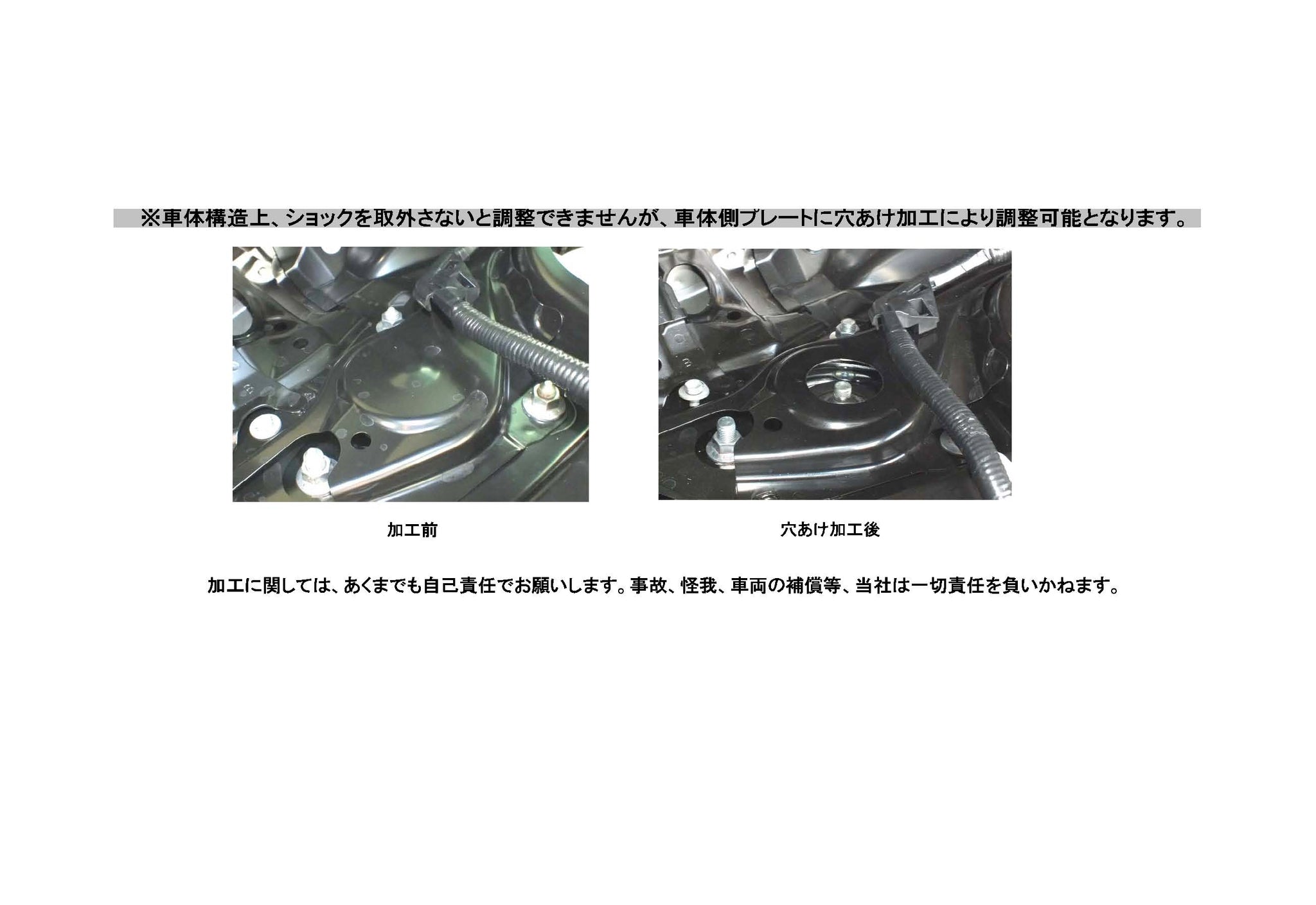

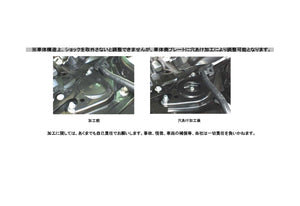

| Product Description | Model year: H30/5~ (2018/5~) Drive (Displacement): FF 1200 TB Series: Black☆i Recommended vehicle height adjustment range (mm) (F/R): -20~-70/-45~-60 Recommended vehicle height (mm) (F/R): -30~-35/-45~-50 Maximum adjustment range (mm) (F/R): -20~-100/-45~-95 Recommended spring rate (kg/mm) (F/R): 8.00/7.00 JAN: 833593 Damping force adjustment (F/R): ※1/○ Number of adjustment steps (F/R): 24/36 Overall length adjustment (F/R): ○/○ Front camber adjustment: ○ Rear vehicle height adjustment: Screw type Matching grade: G-T Note: Not confirmed for R1/10~MC. Reuse of genuine rear upper mount. Spring rate selection range F6~12K, R5~11K. Minimum ground clearance of 90~100mm is secured at the time of shipment (recommended specifications only). Shock must be removed when adjusting front damping force. Adjustment is possible by drilling holes in the plate on the vehicle body. *Please use at your own risk. Processing example ⇒ Click on the photo. |
| Remarks | Installation not confirmed for R1/10~MC. Reuse of genuine rear upper mount. Spring rate selection range F6~12K, R5~11K. Minimum ground clearance is 90~100mm when shipped (recommended specifications only). Shock must be removed when adjusting front damping force. Adjustment possible by drilling holes in the plate on the vehicle body. *Please do so at your own risk. Example of processing ⇒ Click on the photo. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
