$1,720.00 SGD $2,225.00 SGD
| /
| Brand | RS-R |
| Series Name | BLACK-I COILOVER SUSPENSION RECOMMENDED SPRING RATE |
| Product Number | BKT385M |
| Compatible Car | TOYOTA C-HR ZYX10 |

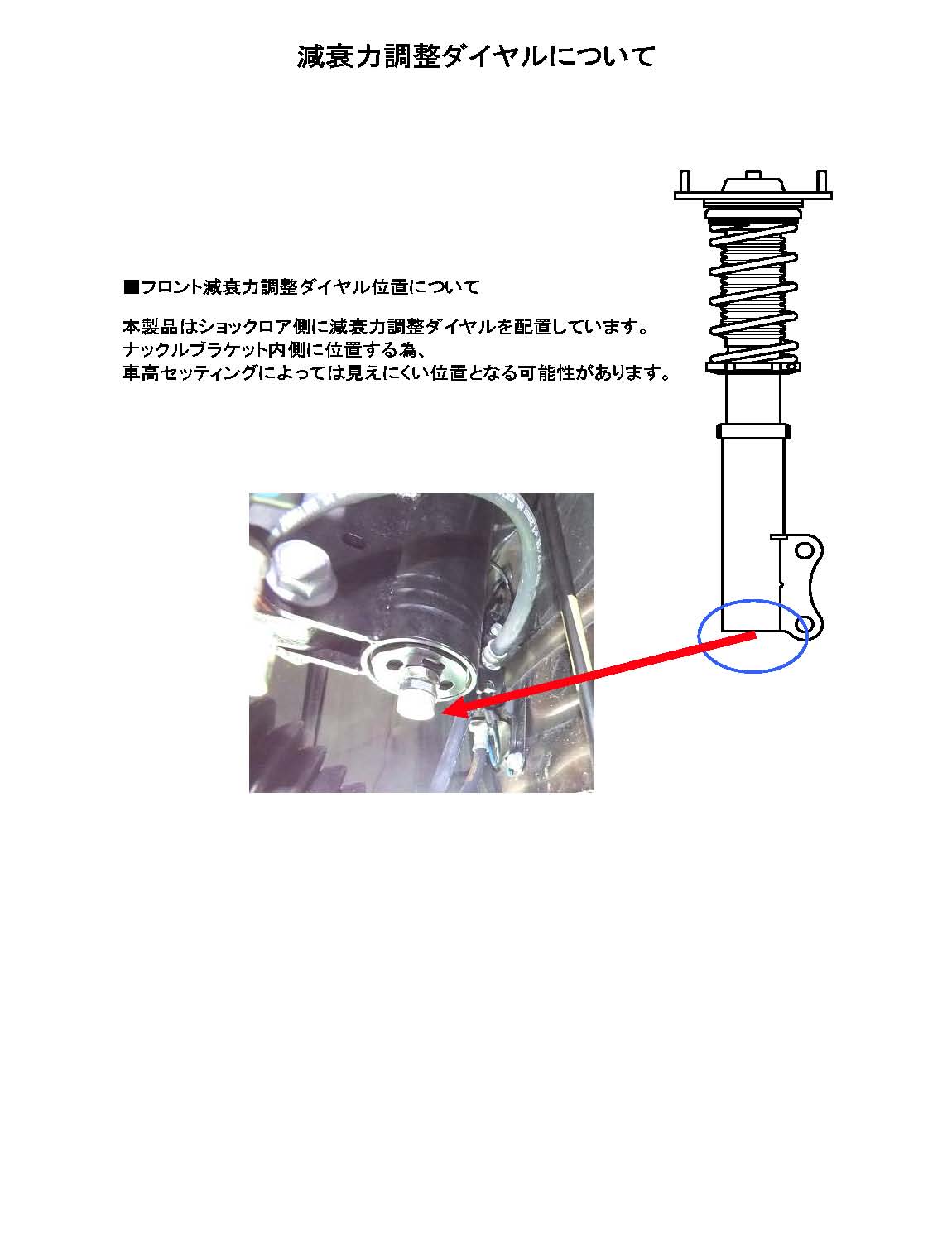

| Product Description | Model year: H28/12~ (2016/12~) Drive (Displacement): FF 1800 HV Series: Black☆i Recommended vehicle height adjustment range (mm) (F/R): -35~-85/-55~-70 Recommended vehicle height (mm) (F/R): -45~-50/-55~-60 Maximum adjustment range (mm) (F/R): -35~-115/-55~-105 Recommended spring rate (kg/mm) (F/R): 8.00/7.00 JAN: 835375 Damping force adjustment (F/R): ○/○ Number of adjustment steps (F/R): 36/36 Overall length adjustment (F/R): ○/○ Front camber adjustment: ○ Rear ride height adjustment: Screw type Matching grade: G Note: Not confirmed for installation after R1/10-MC. Rear upper mount is reused. Front damping force adjustment bottom dial specification. Spring rate selection range F6-12K, R5-11K. At the time of shipment, the minimum ground clearance is 90-100mm (recommended specifications only). Click on the photo for details. |
| Remarks | Installation not confirmed for R1/10 and after model change. Rear upper mount is reused. Front damping force adjustment bottom dial specification. Spring rate selection range F6-12K, R5-11K. At the time of shipment, the minimum ground clearance is 90-100mm (recommended specifications only). Click on the photo for details. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
