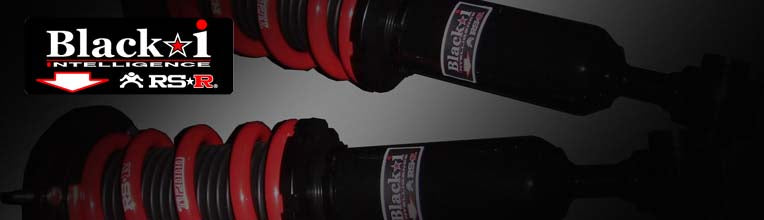

RS-R BLACK-I COILOVER SUSPENSION RECOMMENDED SPRING RATE FOR TOYOTA CROWN MAJESTA GWS214 BKT959M

$1,645.00 SGD $2,127.00 SGD

| /

Brand
RS-R
Series Name
BLACK-I COILOVER SUSPENSION RECOMMENDED SPRING RATE
Product Number
BKT959M
Compatible Car
TOYOTA CROWN MAJESTA GWS214
Product Description
Model year: H25/9~ (2013/9~)
Drive (Displacement): FR 3500 HV
Series: Black☆i
Recommended vehicle height adjustment range (mm) (F/R): -30~-50/-35~-55
Recommended vehicle height (mm) (F/R): -30~-35/-35~-40
Maximum adjustment range (mm) (F/R): -25~-155/-30~-170
Recommended spring rate (kg/mm) (F/R): 18.0/16.0
JAN: 835306
Damping force adjustment (F/R): ○/○
Number of adjustment steps (F/R): 36/36
Full length adjustment (F/R): ○/○
Front camber adjustment: ×
Rear vehicle height adjustment: Full length type
Matching grade: F version
Note: AVS function is cut. Spring rate selection range F14-24K, R12-20K. At the time of shipment, the minimum ground clearance is 90-100mm (limited to recommended specifications).
Remarks
AVS function is cut. Spring rate selection range F14-24K, R12-20K. Minimum ground clearance is 90-100mm at the time of shipment (recommended specifications only). CAN ONLY BE SHIPPED WITH UPS OR FEDEX
Notes
Images are for illustration purpose only. Actual product may vary.
