RS-R BEST-I COILOVER SUSPENSION RECOMMENDED SPRING RATE FOR LEXUS IS300H AVE30 LIT191M

$1,584.00 SGD $2,049.00 SGD

| /

Brand
RS-R
Series Name
BEST-I COILOVER SUSPENSION RECOMMENDED SPRING RATE
Product Number
LIT191M
Compatible Car

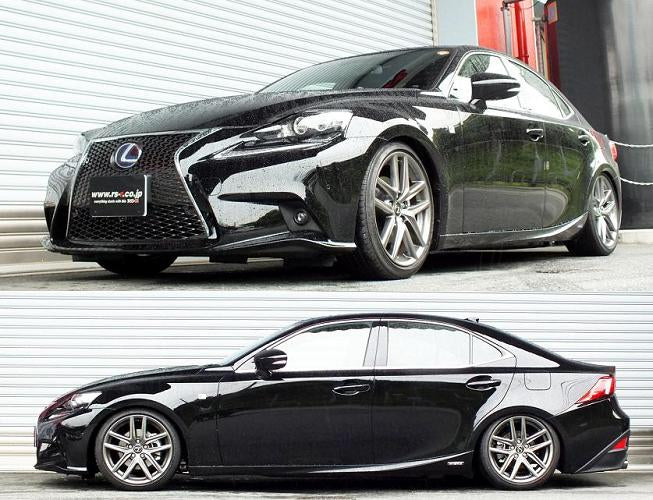

LEXUS IS300H AVE30
Product Description
Model year: H25/5-H28/9 (2013/5-2016/9)
Drive (Displacement): FR 2500 HV
Series: Best☆i
Recommended vehicle height adjustment range (mm) (F/R): -5~-60/-20~-70
Recommended vehicle height (mm) (F/R): -35~-40/-35~-40
Maximum adjustment range (mm) (F/R): +25~-95/-20~-70
Recommended spring rate (kg/mm) (F/R): 10.0/8.30
JAN: 828223
Damping force adjustment (F/R): ○/○
Number of adjustment steps (F/R): 36/36
Overall length adjustment (F/R): ○/○
Front camber adjustment: ×
Rear ride height adjustment: Screw type
Matching grade: F Sport
Note: AVS function will be cut. For pre-MC (up to September 2016), reuse of rear genuine upper mount
Remarks
The AVS function will be cut off. For pre-model change (until September 2016), the rear genuine upper mount can be reused. CAN ONLY BE SHIPPED WITH UPS OR FEDEX
Notes
Images are for illustration purpose only. Actual product may vary.
