ARAGOSTA COMFORT CONCEPT TYPE-E FOR LEXUS RX200T 300 450H #GL20W [2015 10~] 3AAA.L9.E1.R00

ARAGOSTA

COMFORT CONCEPT TYPE-E

3AAA.L9.E1.R00

LEXUS RX200T 300 450H #GL20W [2015 10~]

Upper mount specifications (F,R): Pure, RB
Spring rate (kgf) (F,R): 8, (6)
Down amount (mm) (F,R): 40, 40
Overall length adjustment (mm) (F,R): +30/-30, +15/-15
Shock configuration (material/type/configuration) (F,R): ST/positive/CO, ST/positive/CS

Upper mounts: ● PA → Adjustable pillow ball upper mounts ● PR → Fixed pillow ball upper mounts ● RG → Fixed reinforced rubber upper mounts ● RB → Upper and lower rubber bushings ● Genuine → Uses genuine upper mounts
Spring rate: ● ( ) markings → Exclusive genuine shape Lowering amount: ● Lowering amount from the test vehicle's genuine height Shock configuration: ● CO → Integrated coilover ● CS → Shock and spring placed separately, separate type
Shock configuration: ● ST → Material: Steel hard chrome plated + WPC processed or cation coated ● AL → Material: Aluminum Kashima coated ● Forward → Upright shock ● Inverted → Inverted shock

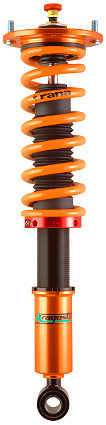

Images are for illustration purpose only. Actual product may vary.
