$1,560.00 SGD $1,835.00 SGD
| /
| Brand | TEIN |

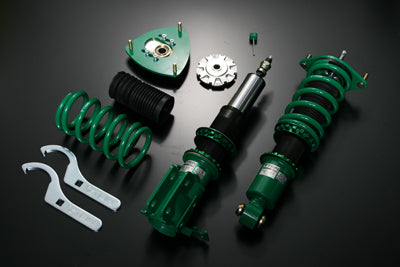

| Series Name | MONO SPORT COILOVER SUSPENSION KIT |
| Product Number | GSM40-71SS1 |
| Compatible Car | MAZDA ROADSTER NA8C |
| Product Description | Model year: 1993.08-1997.12 Engine/Drive system: 1800 FR Model: NA8C Grade: S-SPECIAL, V-SPECIAL, M-PACKAGE Spring included: Yes EDFC compatible: Yes Damping force adjustment (F/R): Yes/Yes Overall length adjustment (F/R): Yes/Yes Mount (F/R): Yes P/U/Yes P/U Standard vehicle height compared to factory mm (F/R): -40/-50 Standard spring rate (N/mm / Kgf/mm) (F/R): 98.1/10.0 / 78.5/8.0 Standard spring free length (mm) / Inner diameter (mm): 150/Φ70 / 140/Φ70 |
| Remarks | [Note] FT may interfere with the arm depending on the individual vehicle. In that case, camber adjustment is required. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
