$2,119.20 SGD $2,493.00 SGD
| /
| Brand | TEIN |
| Series Name | MONO RACING DAMPER KIT |
| Product Number | VSE18-K1LS4 |
| Compatible Car | MITSUBISHI LANCER EVOLUTION X CZ4A |

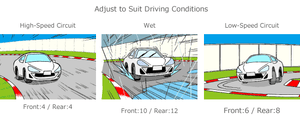

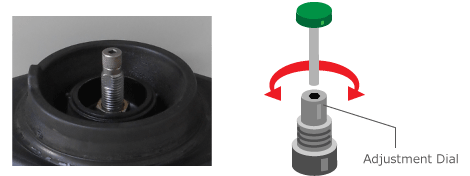

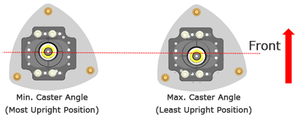

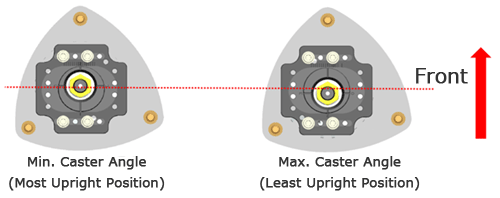

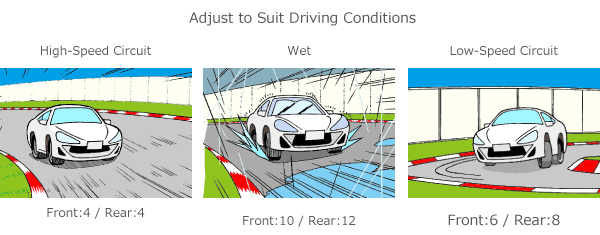

| Product Description | YEAR MODEL: 2007.10-2015.03 GRAGE: GSR RS>br>[Product Features] MONO RACING is developed to satisfy the drivers who frequently take their cars for a spin at the race tracks. Based on the settings of the high-end model SUPER RACING and on a wealth of data gained through participation in various motorsports, spring rates and damping force for MONO RACING are determined to be most suitable for sports driving. MONO RACING features 16-level damping force adjustment, for simultaneous adjustment of compression and rebound. Modify ride comfort and handling according to your preference, changing the properties of the shock absorber with the adjustment dial.For front strut suspensions, MONO RACING includes the camber and caster angle adjustable pillow ball upper mounts evolved from SUPER RACING upper mounts. Many upper mounts provide camber adjustment feature, but MONO RACING upper mounts are also caster adjustable. Camber angle can be adjusted steplessly while caster angle adjustment is available in 4 steps and both can be adjusted individually.*Except some models Lower brackets on strut type suspensions come with camber angle adjustment feature. Camber angle can be adjusted by rotating the eccentric washer 180°. This feature can enable camber angle adjustment, even if it can not be adjusted with the upper mounts. Both adjustments at the upper mounts, if applicable, and the lower brackets combined allows for total camber angle adjustment to meet various needs and preferences. By taking advantage of the high stability of the OEM, the handling performance at high speeds and nose dive during braking are improved to prevent the vehicle from being disturbed. The front and rear helper springs are used to ensure the extension stroke and tune the tires to improve their ground contact and traction. The front uses a 2-way camber/caster adjustable pillow ball upper mount, allowing for a wide range of alignment adjustments. Spring rate (N/mm (kgf/mm)): F=156.9(16.0) R=137.3(14.0) Free length/inner diameter: F=175/Φ65 R=175/Φ65 Height adjustment range (maximum): F=-106 to -14; R=-78 to -3; Height adjustment range (recommended): F=-60 to -40; R=-40 to -20 Stock ratio: F=-50; R=-30 |
| Remarks | [Note] When using the camber adjustment collar in the positive position, if you want to change the direction to the positive direction, use part number SPS12-R16100-25. If you want to adjust the direction to the negative direction, use part number SPS12-R16100-05. When using the camber adjustment collar in the negative position, if you want to change the direction to the positive direction, use part number SPS12-R16100-05. If you want to adjust the direction to the negative direction, use part number SPS12-R16100-25. Four camber adjustment collars are required per vehicle. Camber adjustment collars are available in different offsets and are sold separately. Front springs can be selected from 14, 16, and 18K. Rear springs can be selected from 12, 14, and 16K. [Note: Please contact us separately for spring stock.] |
| Notes | Images are for illustration purpose only. Actual product may vary. |
