$1,034.20 SGD $1,200.90 SGD
| /
| Brand | TODA RACING |

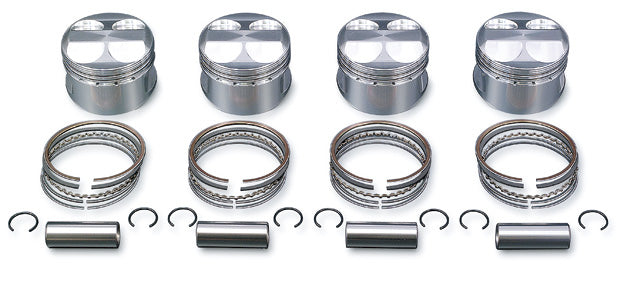

| Series Name | High Comp Forged Piston KIT |
| Product Number | 13010-B16-000 |
| Compatible Car | CIVIC CR-X INTEGRA |
| Compatible Models | B16A B16B B18C |
| Product Description | Engine Type 1: B16A Bore: ø81.00mm Displacement: 1595cc Crown Volume: 8.9cc/8.9cc Projection Height: ±0mm Reference C/R: ξ≈11.6:1 Engine Type 2: B16B Bore: ø81.00mm Displacement: 1595cc Crown Volume: 8.9cc/6.6cc Projection Height: -0.45mm Reference C/R: ξ≈11.0:1 Engine Type 3: B18C Bore: ø81.00mm Displacement: 1797cc Crown Volume: 8.9cc/6.6cc Projection Height: -0.45mm Reference C/R: ξ≈12.3:1 |
| Remarks | *Connecting rod requires converting to fully floating. *1:Crown volume is measured "from the piston shoulder"/"from the deck of the block". *2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide (when TODA t=0.6mm head gasket is used), measurements are required. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
