$1,258.50 SGD $1,480.50 SGD
| /
| Brand | TODA RACING |

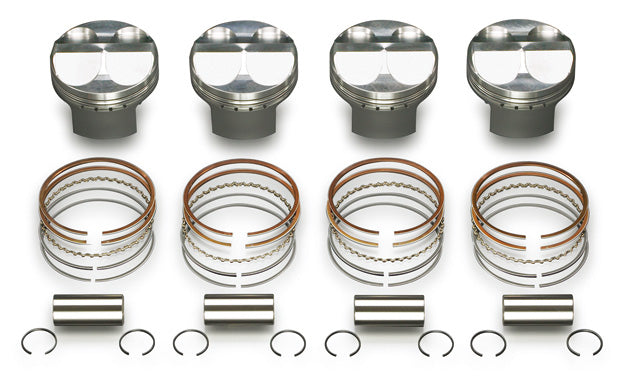

| Series Name | High Comp Forged Piston KIT |
| Product Number | 13030-K20-001 |
| Compatible Car | CIVIC TypeR INTEGRA TypeR ACCORD EuroR |
| Compatible Models | K20A |
| Product Description | Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability. Engine Type: K20A Bore×Stroke (standard stroke): ø87.00×86.0mm Displacement: 2045cc Crown Volume: 10.1cc/10.1cc Projection Height: ±0mm Reference C/R: TODA head GK t=0.3mmξ≈12.8:1 TODA head GK t=0.6mmξ≈12.3:1 |
| Remarks | Based on standard piston pin diameter. *1:Crown volume is measured "from the piston shoulder"/"from the deck of the block". *2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide, measurements are required. *4:TODA gasket is required. (Standard head gasket can not be used) *5:K20A designed using 51.5cc as combustion chamber volume. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
