$4,885.50 SGD $5,673.40 SGD
| /
| Brand | HKS |
| Series Name | GT TURBINE SERIES GT75100_BB T4 A/R 1.15 WG |
| Product Number | 14001-AK056 |

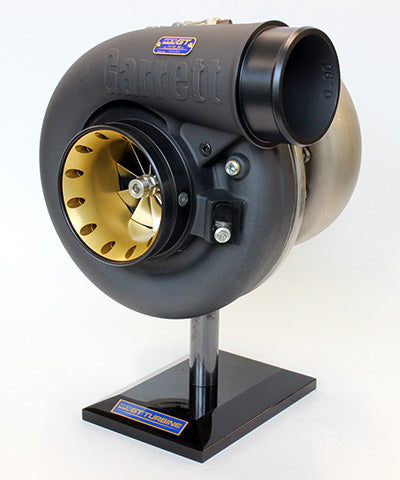

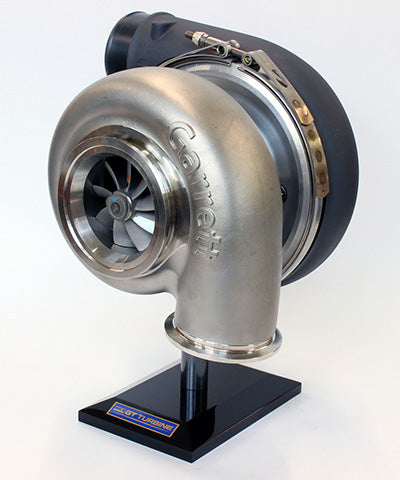

| Product Description | Concepts:•Big turbocharger for inline 6, V8, V6 and inline 4 tuning engines.•HKS takes on the challenge of reaching high power zones that have not been covered previously.•The turbo system offers a comprehensive application in some of fields, such as drag racing, drifting and track time attack.Features:•Compared to previous HKS turbochargers, this turbocharger provides a massive charging air flow despite the small diameter of both compressor/turbo wheels.•The V-band turbo housing is made of stainless steel. (*Material may vary from model to model.)•Recommended for those who use big singles for track day.•CHRA Bearings are ball bearings.•The GTIII-5R and 4R designs have a machined aluminum ported shroud that combines the bell mouth design and T51R type recirculation channel to provide both anti-surging and smooth intake air flow.•A special, highly corrosion-resistant matt black coating treatment on the surface of the compressor housing prevents aluminum corrosion over time. It also combines with a champagne gold anodized ported shroud to unify the design exterior.Highly corrosion-resistant matte black coating treatment:•A highly corrosion-resistant matt black coating treatment is applied to protect the exterior of the compressor housing from corrosion.•This coating is a surface treatment with the ability to provide no surface corrosion even after 240 hours in accelerated corrosion tests.(combined cycle)*In-house dataBellmouth shape ported shroud:•The ported shroud design inherited from the TO4Z and evolved in the GTIII-4R and 5R.•The standard ported shroud has a piped inlet, but the bell-mouth shaped intake air flow channel with a wide inlet diameter is shaped as a "hole" to allow intake air to be taken in through the suction pipe.•The structure also makes it easy to produce the turbo spool sound, also known as the 'T51R sound'.*The volume and sound of the intake sound differs depending on the model. *All models have HKS ported technology. |
| Remarks | Dimensions: GT75100_BB:Assumed outputs: 1000ps Compressor: Inducer 73mm/ Exducer 91mm/ Trim 65/ A/R 0.90Turbine: Inducer 82mm/ Exducer 75mm/ Trim 84/ A/R 1.01/1.15/ Material Stainless Steel CopperInlet: V-BamdOutlet: V-Bamd Watergate: Free FloatEngine: RB26 (2.8L) / 2JZ (3.4L)Features: Aimed at 1000ps. with the same spool-up as the T51R SPL.BB with boost keeping at high rpm.Turbo outlet parts. T4 flange type: 14001-AK055, 14001-AK056, 14001-AK059, 14001-AK060. Flange outer diameter: φ117.3. Material: SUS Compatible pipe outer diameter: φ100 Cannot be attached to V-band type turbo housing |
| Notes | Images are for illustration purpose only. Actual product may vary. |
