$2,190.04 SGD $2,333.76 SGD
| /
| Brand | M&M HONDA |
| Series Name | CARBON GT WING TYPE 02BJ 1440MM WITH BOLT-ON BRACKET |
| Product Number | 00900-FD2-WC02-BJ |
| Compatible Car | CIVIC FD2 Mugen RR |

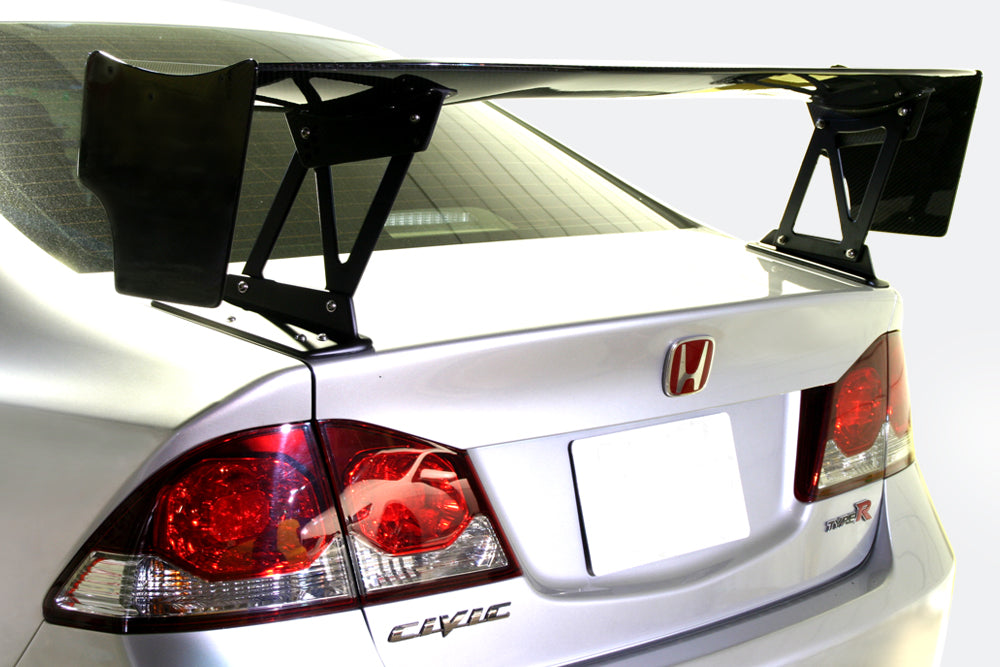

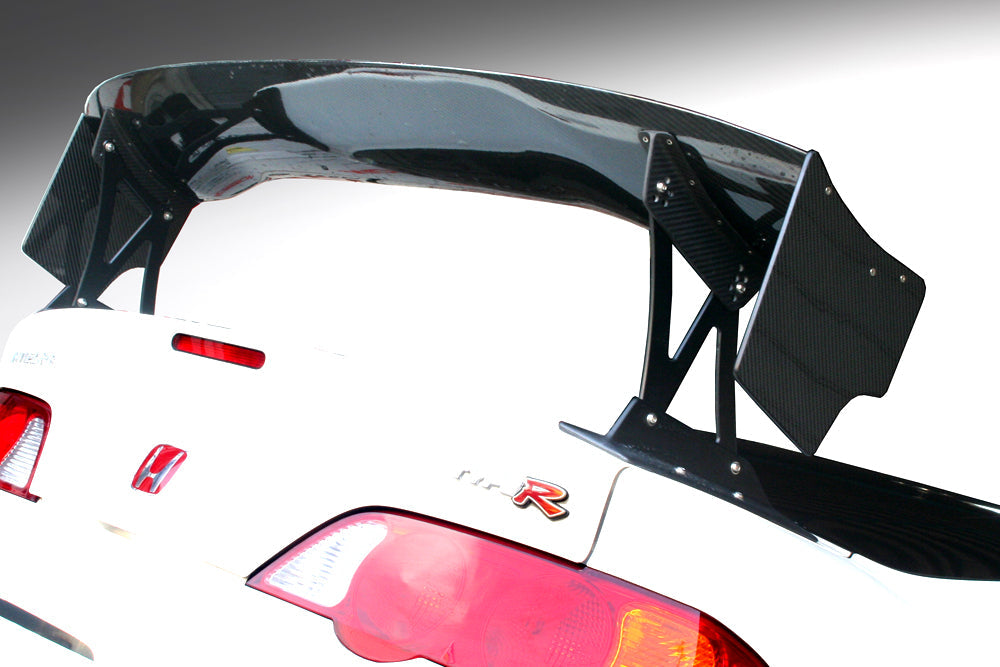

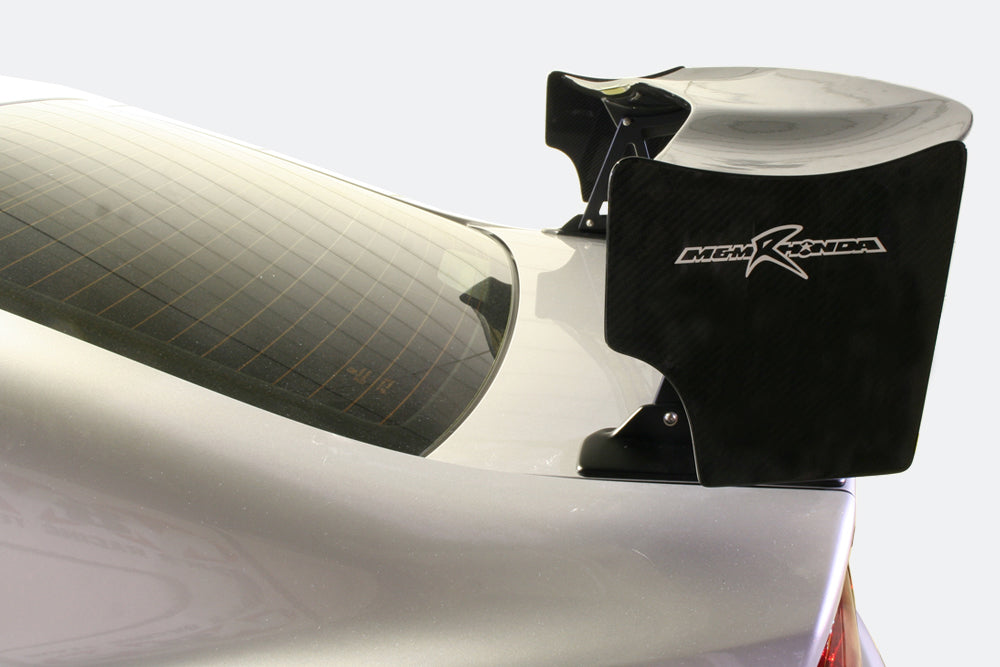

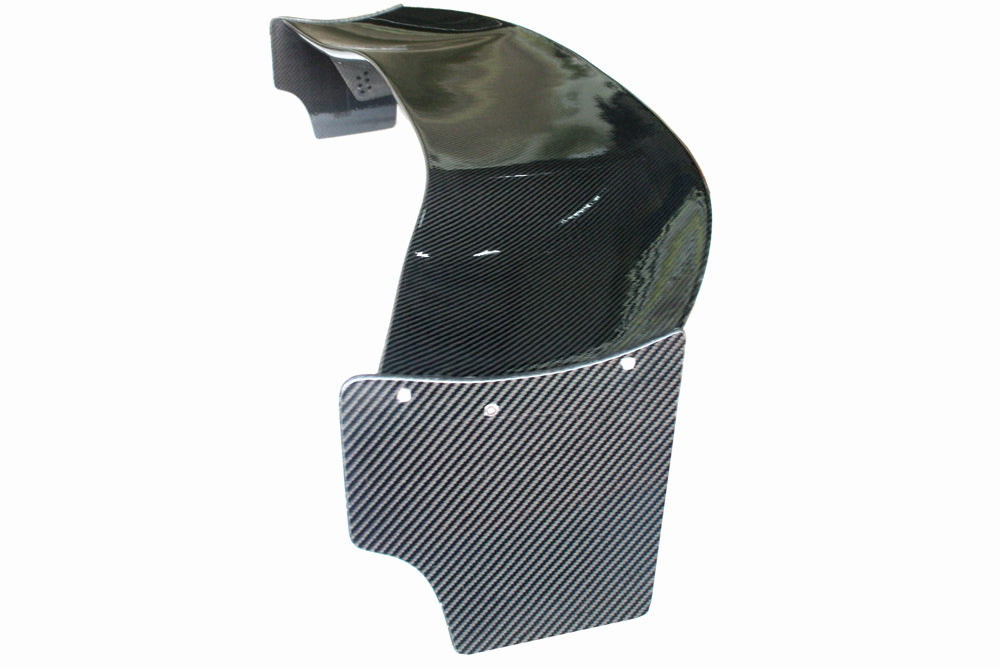

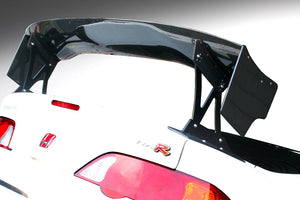

| Product Description | The carbon GT wing 02BJ is a bolt-on type without drilling because it has a wing width of 1,440 mm and is a size compatible with vehicle inspections and comes with a dedicated bracket that can be attached using the removal holes of the genuine wing. The wing tip plate is a 02 type 3D GT carbon wing. The height of the wing can be selected from 5 sizes up to 135,165,195,225,245. The M & M GT wing is made to order. Please let us know the height of the wing at the time of purchase. ■■ Carbon GT Wing type 02 BJ specifications ■■ □ Wing width 1440mmm Width for vehicle inspection □ Wing height 135,165,195,225,245mm (wing stay length) Free choice □ Wing tip plate shape Type 02 setting □ Wing Shape Single 3D design, left and right wing tip mounting type □ How to attach the wing With wing bracket that uses the hole of the genuine wing □ Wing material Wet carbon Wet carbon is used for the carbon material and aluminum material is used for the wing stay. With an angle adjustment function and front / rear step adjustment, the bracket material uses dry carbon to pursue both design and strength. The wing weight is about 4 kg on average, and the height of the aluminum wing stay can be selected from 135, 165, 195, 225, 245 mm. Since it is the height of the aluminum wing stay, it is not the height to the wing. The height of the wing center is about 150 mm higher. The height and angle of the wing can be adjusted. To attach the wing, use the holes removed from the genuine wing on both sides of the trunk and fasten it with the attached bracket. ■ Type 01BJ vehicle inspection compatible dimension width is 1,440mm ■ Type 01BF non-compliant dimension width is 1,500mm ■ Type 02BJ vehicle inspection compatible dimension width is 1,440mm ■ Type 02BF non-compliant dimension width) is 1,500mm ■ There are two types of wing tip plates, 01 type and 02 type. |
| Remarks | ■ It is a special bracket type that is fastened using the genuine wing hole. ■ The height of the wing stay can be freely selected from 135, 165, 195, 225, and 245 mm. ■ Do not hold the wing directly to lift or close the trunk. ■ The height of the wing will be about 150mm higher than the height of the wing stay. ■ Carbon material can suppress discoloration by applying UV clear coating. ■ Please note that carbon material is easily discolored by ultraviolet rays and heat. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
