$1,616.67 SGD $2,122.56 SGD
| /
| Brand | DAIWA RACING LABO |
| Series Name | DRL RADIATOR + OIL COOLER |
| Product Number | DRLTA020042 |
| Compatible Car | NISSAN FAIRLADY Z Z34 |
| Product Description | Year of manufacture / Date: 2008/12-2021 Core size: H635 × W449 × T36 mm Net weight: 6.7 kg Weight with water: 9.9 kg Radiator core size: 635 x 402 x 36 mm Oilcooler core size: 635 x 47 x 36 mm Oilcooler core row: 7 |

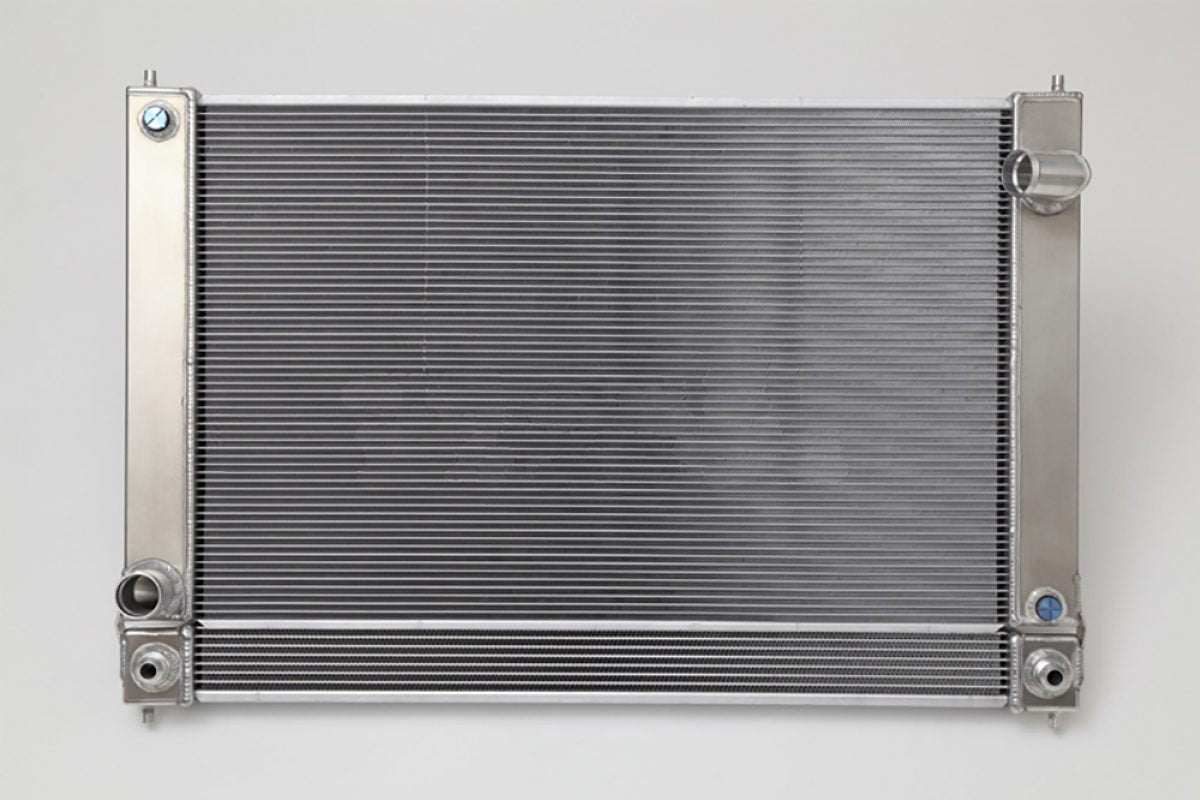

| Remarks | ・A model integrating radiator + oil cooler with an innovative layered structure with the two components arranged vertically ・Recommended for use with the limiter, which intervenes to protect the engine when the oil temperature rises ・*The cooler condenser also needs to be replaced *** The radiator requires our air-conditioning condenser to be installed ★ Sponge Installation manual >>> ★ Sponge Installation manual >>> This model divides the mounting space of a normal radiator into a single heat exchanger, with the radiator on the upper level and the oil cooler on the lower level. Instead of arranging the radiator and oil cooler front to back, the innovative mille-feuille structure arranges them vertically, allowing for ample intake of fresh airflow without obstruction. Recommended for use with the limiter, which intervenes to protect the engine when the oil temperature rises during circuit driving. With the addition of an engine oil line, the unit can be installed completely bolt-on. Furthermore, the separately sold cooler condenser is designed not to overlap with the lower oil cooler section, further improving the oil cooler's heat dissipation efficiency. It can handle a wide range of uses, from general driving to serious circuit racing. We recommend modifying the fan cover to direct airflow more effectively to the oil cooler. ★ Click here for an image of how to modify the fan cover >>> |
| Notes | Images are for illustration purpose only. Actual product may vary. |
