$2,868.03 SGD $3,246.21 SGD
| /
| Brand | GANADOR |

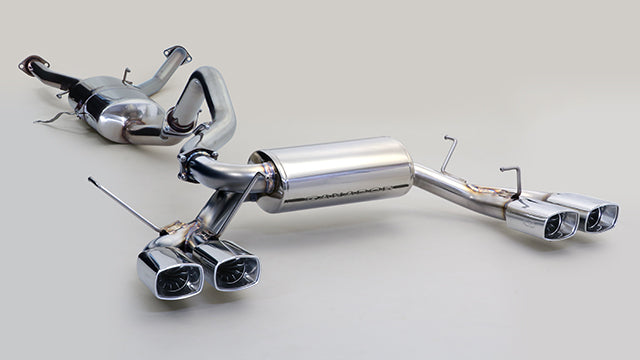

| Series Name | 4-PIPE EXHAUST |
| Product Number | GDS-165 |
| Compatible Car | TOYOTA LAND CRUISER 300 3BA-VJA300W |
| Compatible Engine | V35A-FTS |

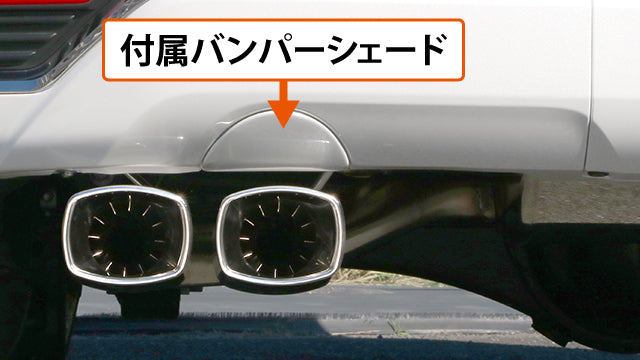

| Product Description | ● Applicable Grades and Other Specifications: ZX Grade ● Suitable Model Year: August 2021 onwards/Partial improvements to March 2025 are also possible ● Brand Series: Vertex 4WD/SUV (equipped with PBS.S) ● Idling Noise Level (dB): 61 (Normal: 56) ● Proximity Exhaust Noise Level (dB): 79 (Normal: 81) ● Power (PS): 406.1 (Normal: 392.6) ● Torque (kgf·m): 62.6 (Normal: 56.9) ● Muffler Weight (kg): 34.3 (Normal: 27.8) ● Tail Diameter: 120x90 square (four exhaust pipes, left and right) ● Pipe Diameter: φ70-φ80 ● Estimated Installation Time: 2.5 hours ● Genuine Reused Products: Tapered gaskets (2), special bolts (4), bolts (2), springs (8), rubber mounts (5) [Muffler Ground Clearance when Unloaded] - Tailpipe bottom: 32.5 cm - Rear silencer bottom: 36.5 cm - Front silencer bottom: 29.0 cm - Front fender arch: 885 mm - Rear fender arch: 920 mm [Included Parts] - Bumper shade (color selection) - M10x20 bolt [P1.25] (3 pieces) - M10x70 bolt (2 pieces) - M10 flat washer (3 pieces) - M10 flat washer [φ32xt3.2] (2 pieces) - Collar [φ13.8xt1.5x40] (2 pieces) - M10 flange nut (4 pieces) - M8x35 bolt with washer & M8 flat washer (6 sets) - M8 flange nut (7 pieces) - GC04 gasket (1 piece) - G22 gasket (1 piece) - Included bracket (3 pieces) - Rubber mount for φ12 (3 pieces) - Silencer band (1 piece) - Ground line 250mm (1 set) - Clearance gauge (1 piece) - Instruction manual **The "bumper shade" that covers the cutout on the left side of the bumper is an included part. When ordering, please specify the grade (ZX) and the color of the cutout section. For ZX grade models, please choose from the following three options: "Precious White Pearl (090)", "Black (202)", or "Unpainted". *The following ZX exterior colors are eligible for unpainted (primer finish): "Gray Metallic (1G3)", "Dark Red Mica Metallic (3Q3)", and "Avant-garde Bronze Metallic (4V8)". |
| Remarks | *For gasoline ZX grade with standard bumper. *Requires removal of spare tire, suspension chain, and rear tow hook for installation. *Vehicles equipped with the manufacturer option "Tire Pressure Warning System (TPWS)" must have "ID registration/tire count registration" (for a fee) performed at an authorized Toyota dealer to change the setting of the number of tires with transmitters from "5 wheels" to "4 wheels". *Compatibility with other aero parts is unconfirmed. *The silencer (muffler) is a wool-less type. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
