$1,260.27 SGD $1,463.22 SGD
| /
| Brand | JAOS |
| Series Name | BATTLEZ LIFT-UP KIT VFCA VER. B (30) |
| Product Number | A733245B |
| Compatible Car | TOYOTA FJ CRUISER (10+) |

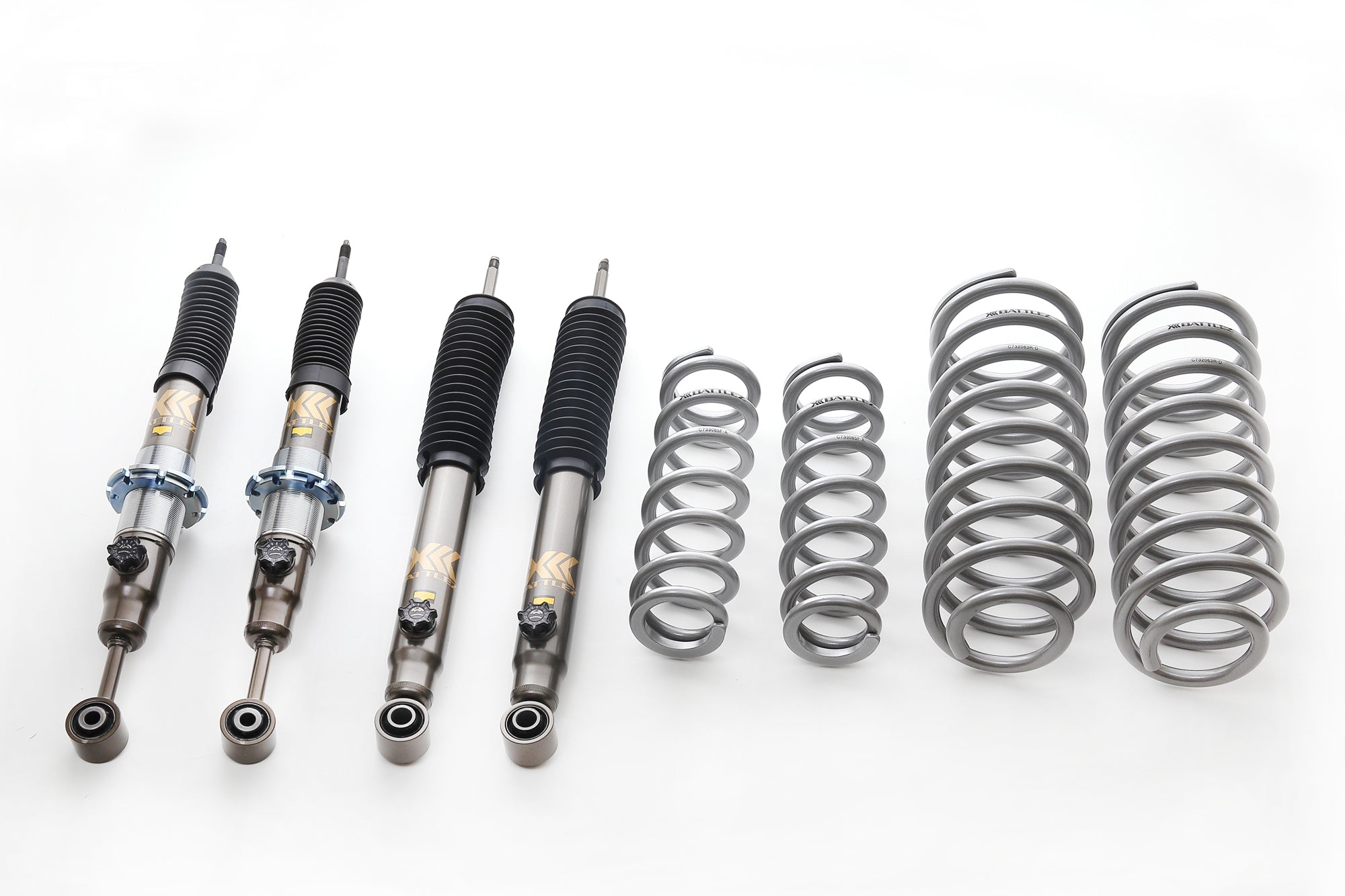

| Product Description | This lift-up suspension kit combines coil springs made with titanium alloy (guarantee against sagging) with high-performance dampers featuring a Harmoflex mechanism for adjustable damping force. It also includes ride height adjustment at the front. Version B provides a lift of approximately 30mm at both the front and rear. Product contents:Front coil springs, rear coil springs, height-adjustable front dampers, rear dampers, height adjustment wrench. Vehicle height: Lift kit: Front 20-60mm, Rear 25-35mm Spring: Wire diameterFront 15Φ, Rear 16Φ Spring rate : Front 106 N/mm, Rear 28 N/mm Color: Silver Shock absorber Type - Front: Low-pressure gas twin-tube damper, ride height adjustment, Harmoflex mechanism Rear: Low-pressure gas twin-tube damper, Harmoflex mechanism Damping force adjustment: 14-step dial adjustment Damping force: Front: Rebound -10 to 30%, Compression -40 to -20% (0.3 m/sec/compared to genuine) Rear: Rebound 40 to 90%, Compression -30 to -10% (0.3 m/sec/compared to genuine) Stroke : Front +8mm, Rear +15mm Body diameter : Front 54φ (original 45φ), Rear 54φ Piston diameter : Front 30mm diameter, rear 30mm diameter Color: Gray metallic Installation method : Genuine replacement part, using genuine front upper mount. Estimated installation time: 2.5 to 3 hours |
| Remarks | Not compatible with X-REAS vehicles. Compatible with 2010 model year and later (left-hand drive). For vehicles registered on or after January 2011, the reverse (backup) lamp must be relocated during installation. Ride height adjustment function is for the front only. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
