$850.66 SGD $1,027.36 SGD
| /
| Brand |
MANLEY
|
| Series Name |
MANLEY PISTON FA20 86.50MM BORE FOR FA20 70722417
|
| Product Number |
70722417
|
| Compatible Car | |
| Compatible Engine |
FA20
|
| Product Description |

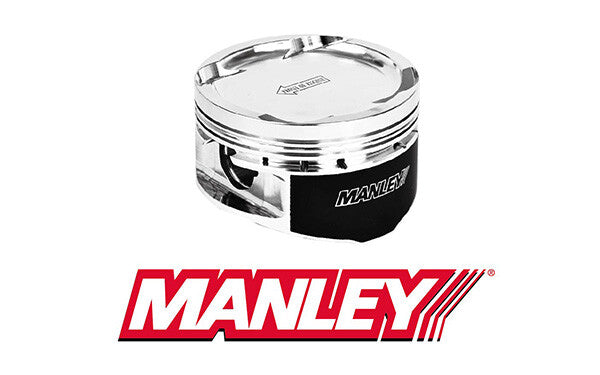

MANLEY piston set for FA20. MANLEY parts no. 46866DT-4; matching ring set no. 632605C-4. Bore 86.50mm; rod length 129.29mm; stroke 86.00mm; crown volume -11.40cc; compression ratio 10.0; Dish type; piston weight 334g. Lightweight piston made of high-strength 2618A aluminium alloy, with a pressure balance groove structure and valve recesses compatible with 1mm oversize big valves.
|
| Remarks |
Quantity/application: One engine set. Fitment, part numbers and prices come from the vehicle-specific list PDF linked on the page (https://www.trust-power.com/wp-content/uploads/2018/10/MANLEY-piston-20220302.pdf, dated 2022-03-02); the HTML page itself carries no table. PDF fetched twice and the union of rows taken. Recommended piston clearance: 0.076mm standard specification, 0.088mm high-boost specification. The HTML page quotes piston pin part no. 42551 for both the Standard series (chromoly pins) and the Extreme Duty series (9310 alloy pins); pin series is not broken out per row in the PDF.
|
| Notes |
Images are for illustration purpose only. Actual product may vary.
|
